A unique hetero-hexadecameric architecture displayed by the Escherichia coli O157 PaaA2-ParE2 antitoxin-toxin complex.

Sterckx YG, Jové T, Shkumatov AV, Garcia-Pino A, Geerts L, De Kerpel M, Lah J, De Greve H, Van Melderen L, Loris R, J Mol Biol 428(8):1589-603 (2016) Europe PMC

SASDAA9 – EcPaaA2-EcParE2His construct

Plasmid stabilization protein ParE
Uncharacterized protein (Antitoxin)
MWI(0) 250 kDa
MWexpected 323 kDa
VPorod 312 nm3
log I(s) 2.30×102 2.30×101 2.30×100 2.30×10-1
Plasmid stabilization protein ParE Uncharacterized protein (Antitoxin) small angle scattering data  s, nm-1
ln I(s)
Plasmid stabilization protein ParE Uncharacterized protein (Antitoxin) Guinier plot ln 2.30×102 Rg: 3.8 nm 0 (3.8 nm)-2 s2
(sRg)2I(s)/I(0)
Plasmid stabilization protein ParE Uncharacterized protein (Antitoxin) Kratky plot 1.104 0 √3 sRg

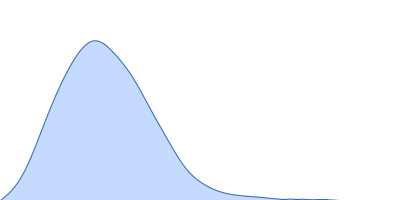

p(r)
Plasmid stabilization protein ParE Uncharacterized protein (Antitoxin) pair distance distribution function Rg: 3.8 nm 0 Dmax: 16.2 nm

Data validation

Fits and models

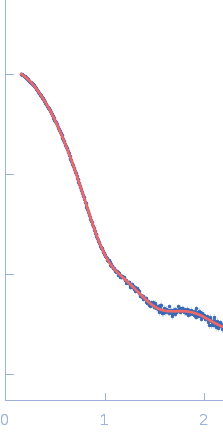

log I(s)
 s, nm-1
Plasmid stabilization protein ParE Uncharacterized protein (Antitoxin) CRYSOL model
log I(s)
 s, nm-1
Plasmid stabilization protein ParE Uncharacterized protein (Antitoxin) DAMMIN model
Synchrotron SAXS data from solutions of EcPaaA2-EcParE2His construct in 50 mM Tris-HCl 500 mM NaCl, pH 7.5 were collected on the BM29 beam line at the ESRF storage ring (Grenoble, France) using a Pilatus 1M detector at a sample-detector distance of 2.4 m and at a wavelength of λ = 0.093 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). Solute concentrations ranging between 0.5 and 3.5 mg/ml were measured at 10°C. 10 successive 2 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted. The low angle data collected at lower concentrations were extrapolated to infinite dilution and merged with the higher concentration data to yield the final composite scattering curve.

Use of SAXS to validate the oligomer state of the obtained crystal structure and to model missing afinity tags

Plasmid stabilization protein ParE (EcParE2His)
Mol. type   Protein
Organism   Escherichia coli
Olig. state   16-mer
Mon. MW   11.7 kDa

UniProt   A0A0D7C2L1 (1-92)
Sequence   FASTA

Uncharacterized protein (Antitoxin) (EcPaaA2)
Mol. type   Protein
Organism   Escherichia coli
Olig. state   16-mer
Mon. MW   8.5 kDa

UniProt   A0A0F6F6Q9 (14-75)
Sequence   FASTA
