Small angle X-ray scattering as a complementary tool for high-throughput structural studies.

Grant TD, Luft JR, Wolfley JR, Tsuruta H, Martel A, Montelione GT, Snell EH, Biopolymers 95(8):517-30 (2011) Europe PMC

SASDCK6 – Sheath tail protein (DSY3957) from Desulfitobacterium hafniense, Northeast Structural Genomics Consortium Target DhR18

Uncharacterized protein
MWexperimental 40 kDa
MWexpected 48 kDa
VPorod 66 nm3
log I(s) 7.62×102 7.62×101 7.62×100 7.62×10-1
Uncharacterized protein small angle scattering data  s, nm-1
ln I(s)

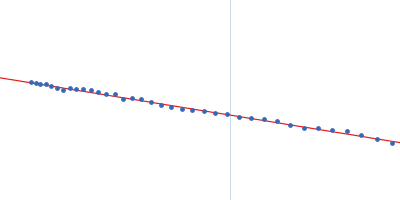

Uncharacterized protein Guinier plot ln 7.63×102 Rg: 2.8 nm 0 (2.8 nm)-2 s2
(sRg)2I(s)/I(0)

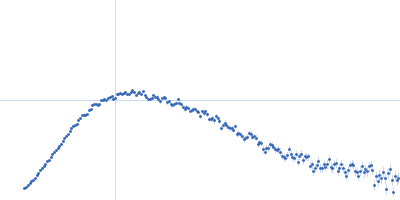

Uncharacterized protein Kratky plot 1.104 0 3 sRg
p(r)

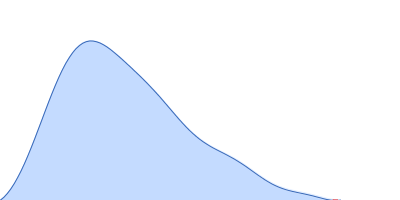

Uncharacterized protein pair distance distribution function Rg: 2.9 nm 0 Dmax: 9.9 nm

Data validation


Fits and models


log I(s)
 s, nm-1
Uncharacterized protein PDB (PROTEIN DATA BANK) model

log I(s)
 s, nm-1
Uncharacterized protein DAMFILT model

Synchrotron SAXS data from solutions of Sheath tail protein (DSY3957) from Desulfitobacterium hafniense, Northeast Structural Genomics Consortium Target DhR18 in 5 mM DTT 100 mM NaCl 10 mM Tris-HCl 0.02 % NaN3, pH 7.5 were collected on the BL4-2 beam line at the Stanford Synchrotron Radiation Lightsource (SSRL) storage ring (Menlo Park, CA, USA) using a Rayonix MX225-HE detector at a sample-detector distance of 1.5 m and at a wavelength of λ = 0.13 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). Solute concentrations ranging between 1.7 and 5.3 mg/ml were measured at 20°C. 20 successive 1 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Uncharacterized protein
Mol. type   Protein
Organism   Desulfitobacterium hafniense
Olig. state   Monomer
Mon. MW   48.3 kDa

UniProt   Q24QE6
Sequence   FASTA

PDB ID   3HXL
