| MWexperimental | 90 | kDa |
| MWexpected | 108 | kDa |
| VPorod | 120 | nm3 |
|
log I(s)
2.11×102
2.11×101
2.11×100
2.11×10-1
|
s, nm-1
|
Quaternary structure of the human Cdt1-Geminin complex regulates DNA replication licensing.
De Marco V, Gillespie PJ, Li A, Karantzelis N, Christodoulou E, Klompmaker R, van Gerwen S, Fish A, Petoukhov MV, Iliou MS, Lygerou Z, Medema RH, Blow JJ, Svergun DI, Taraviras S, Perrakis A, Proc Natl Acad Sci U S A 106(47):19807-12 (2009) Europe PMCSASDAW3 – Geminin:Cdt1 4:2 heterohexamer
GemininDNA replication factor Cdt1
|
|
|

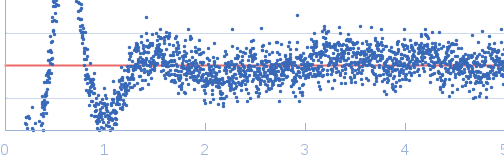

Fits and models
|
|
|
Synchrotron SAXS
data from solutions of
Geminin:Cdt1 4:2 heterohexamer
in
25 mM Tris75 200 mM NaCl, pH 7.5
were collected
on the
EMBL X33 beam line
at the DORIS III, DESY storage ring
(Hamburg, Germany)
using a MAR 345 Image Plate detector
(I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle).
.
The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.
Wavelength = UNKNOWN. Cell temperature = UNKNOWN. Storage temperature = UNKNOWN. Sample detector distance = UNKNOWN. X-ray Exposure time = UNKNOWN. Number of frames = UNKNOWN. Concentration = UNKNOWN
