Cooperation between intrinsically disordered and ordered regions of Spt6 regulates nucleosome and Pol II CTD binding, and nucleosome assembly.

Kasiliauskaite A, Kubicek K, Klumpler T, Zanova M, Zapletal D, Koutna E, Novacek J, Stefl R, Nucleic Acids Res (2022) Europe PMC

SASDL32 – Transcription elongation factor SPT6

Transcription elongation factor SPT6
MWexperimental 73 kDa
MWexpected 145 kDa
VPorod 249 nm3
log I(s) 4.79×103 4.79×102 4.79×101 4.79×100
Transcription elongation factor SPT6 small angle scattering data  s, nm-1
ln I(s)

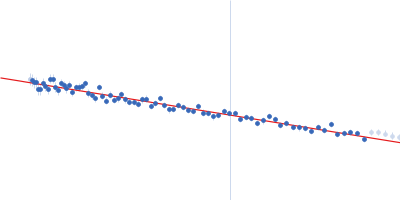

Transcription elongation factor SPT6 Guinier plot ln 4.79×103 Rg: 4.5 nm 0 (4.5 nm)-2 s2
(sRg)2I(s)/I(0)

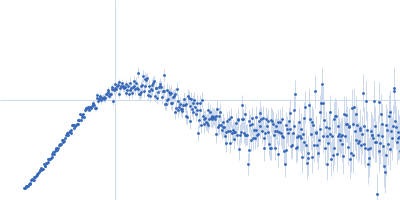

Transcription elongation factor SPT6 Kratky plot 1.104 0 3 sRg
p(r)

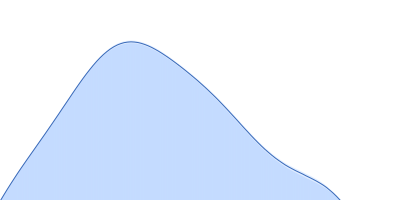

Transcription elongation factor SPT6 pair distance distribution function Rg: 4.2 nm 0 Dmax: 12.0 nm

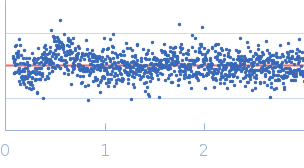

Data validation


Fits and models

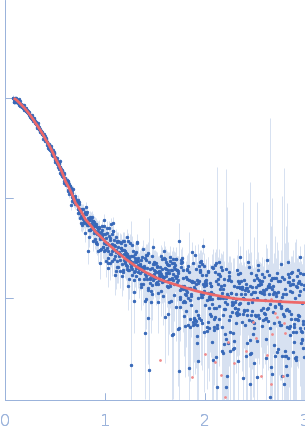

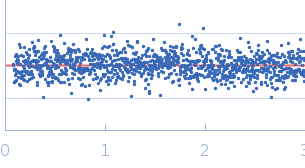

log I(s)
 s, nm-1
Transcription elongation factor SPT6 Rg histogram Rg, nm

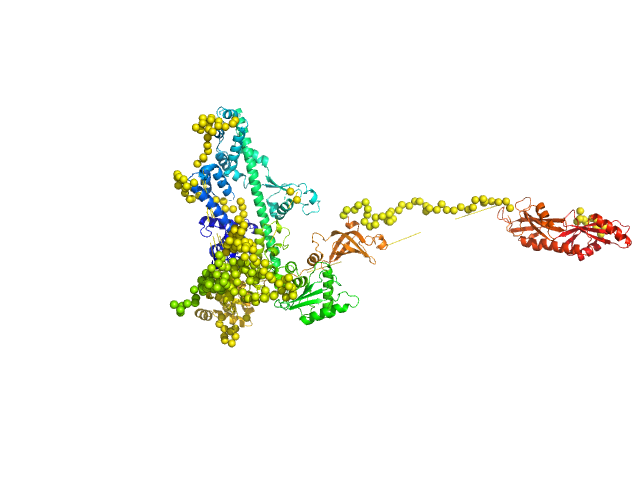

Transcription elongation factor SPT6 EOM/RANCH model
Transcription elongation factor SPT6 EOM/RANCH model
Transcription elongation factor SPT6 EOM/RANCH model
Transcription elongation factor SPT6 EOM/RANCH model

log I(s)
 s, nm-1
Transcription elongation factor SPT6 CORAL model

Synchrotron SAXS data from solutions of Transcription elongation factor SPT6 in 25 mM NaPi; 150mM NaCl; 0.5 mM EDTA; 5% glycerol; 1 mM DTT, pH 7.5 were collected on the EMBL P12 beam line at the PETRA III storage ring (DESY; Hamburg, Germany) using a Pilatus 2M detector at a sample-detector distance of 3 m and at a wavelength of λ = 0.124 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 5.00 mg/ml was measured at 15°C. 20 successive 0.045 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Transcription elongation factor SPT6 (SPT6)
Mol. type   Protein
Organism   Saccharomyces cerevisiae (strain ATCC 204508 / S288c)
Olig. state   Monomer
Mon. MW   144.9 kDa

UniProt   P23615
Sequence   FASTA

PDB ID   3PSI
