FusC, a member of the M16 protease family acquired by bacteria for iron piracy against plants.

Grinter R, Hay ID, Song J, Wang J, Teng D, Dhanesakaran V, Wilksch JJ, Davies MR, Littler D, Beckham SA, Henderson IR, Strugnell RA, Dougan G, Lithgow T, PLoS Biol 16(8):e2006026 (2018) Europe PMC

SASDDW6 – The ferredoxin protease, FusC, E83A mutant + 5 µM Arabidopsis ferredoxin

Ferredoxin protease E83A mutant
Arabidopsis ferredoxin 2
MWexperimental 100 kDa
MWexpected 113 kDa
VPorod 148 nm3
log I(s) 2.80×10-1 2.80×10-2 2.80×10-3 2.80×10-4
Ferredoxin protease E83A mutant Arabidopsis ferredoxin 2 small angle scattering data  s, nm-1
ln I(s)

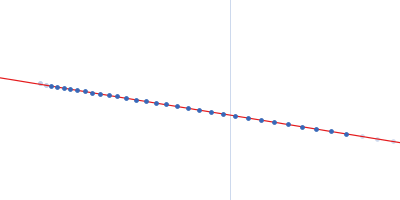

Ferredoxin protease E83A mutant Arabidopsis ferredoxin 2 Guinier plot ln 2.80×10-1 Rg: 3.7 nm 0 (3.7 nm)-2 s2
(sRg)2I(s)/I(0)
Ferredoxin protease E83A mutant Arabidopsis ferredoxin 2 Kratky plot 1.104 0 3 sRg
p(r)

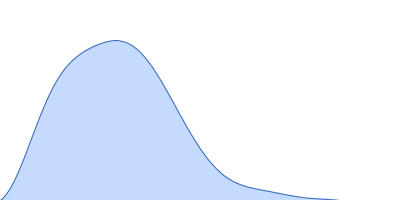

Ferredoxin protease E83A mutant Arabidopsis ferredoxin 2 pair distance distribution function Rg: 3.7 nm 0 Dmax: 13.7 nm

Data validation


There are no models related to this curve.

Synchrotron SAXS data from solutions of ferredoxin protease, FusC, E83A mutant + 5 µM Arabidopsis ferredoxin in 20 mM Tris, 150 mM NaCl, pH 7.8 were collected on the SAXS/WAXS beam line at the Australian Synchrotron storage ring (Melbourne, Australia) using a Pilatus 1M detector at a sample-detector distance of 1.3 m and at a wavelength of λ = 0.103 nm (l(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 3.00 mg/ml was measured at 20°C. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

The FusC E83A mutant (30 µM) in the presence of 5 µM Arabidopsis ferredoxin. The background subtraction included 5 µM Arabidopsis ferredoxin in buffer.

Ferredoxin protease E83A mutant (FusC E83A)
Mol. type   Protein
Organism   Pectobacterium atrosepticum SCRI1043
Olig. state   Monomer
Mon. MW   101.2 kDa

UniProt   Q6D8U3 (26-924)
Sequence   FASTA

Arabidopsis ferredoxin 2 (Ara_Fer2)
Mol. type   Protein
Organism   Arabidopsis thaliana
Olig. state   Monomer
Mon. MW   11.3 kDa

UniProt   P16972 (53-145)
Sequence   FASTA
