data from solutions of
Truncated Apolipoprotein E4 (1-191)
20 mM HEPES, 300 mM NaCl, 1 mM TCEP, pH 8
B21 beam line
at the Diamond Light Source storage ring
using a Pilatus 2M detector
at a sample-detector distance of 4.0 m and
at a wavelength of λ = 0.1 nm

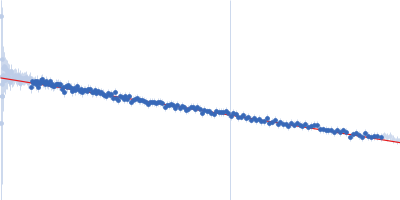

(I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle).
One solute concentration of 4.00 mg/ml was measured
1 second frames were collected.
The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.
