Visualizing functional dynamicity in the DNA-dependent protein kinase holoenzyme DNA-PK complex by integrating SAXS with cryo-EM.

Hammel M, Rosenberg DJ, Bierma J, Hura GL, Lees-Miller SP, Tainer JA, Prog Biophys Mol Biol (2020) Europe PMC

SASDJU4 – X-ray repair cross-complementing proteins 5 and 6

X-ray repair cross-complementing protein 6
X-ray repair cross-complementing protein 5
MWexperimental 160 kDa
MWexpected 153 kDa
VPorod 253 nm3
log I(s) 2.81×101 2.81×100 2.81×10-1 2.81×10-2
X-ray repair cross-complementing protein 6 X-ray repair cross-complementing protein 5 small angle scattering data  s, nm-1
ln I(s)

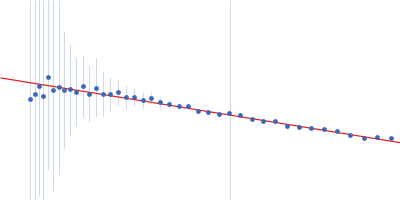

X-ray repair cross-complementing protein 6 X-ray repair cross-complementing protein 5 Guinier plot ln 2.81×101 Rg: 4.2 nm 0 (4.2 nm)-2 s2
(sRg)2I(s)/I(0)

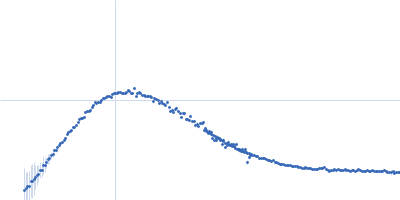

X-ray repair cross-complementing protein 6 X-ray repair cross-complementing protein 5 Kratky plot 1.104 0 3 sRg
p(r)
X-ray repair cross-complementing protein 6 X-ray repair cross-complementing protein 5 pair distance distribution function Rg: 4.1 nm 0 Dmax: 14.9 nm

Data validation


Fits and models


log I(s)
 s, nm-1

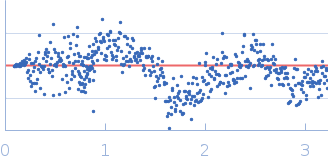

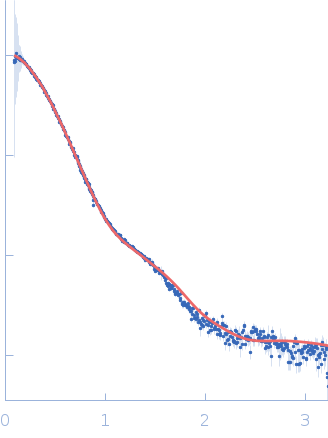

X-ray repair cross-complementing protein 6 X-ray repair cross-complementing protein 5 BILBOMD model

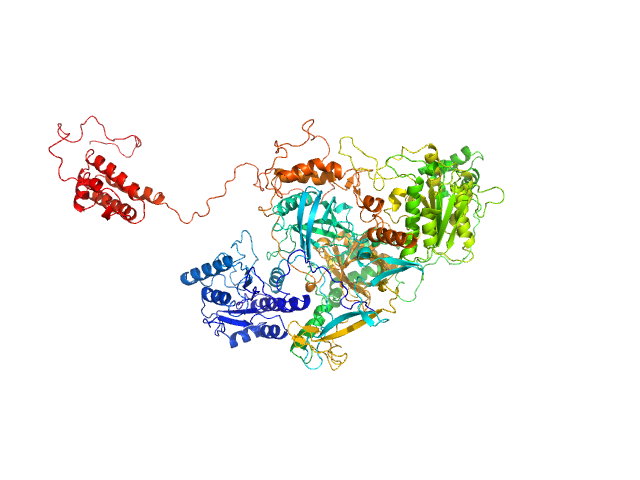

X-ray repair cross-complementing protein 6 X-ray repair cross-complementing protein 5 BILBOMD model

Synchrotron SAXS data from solutions of X-ray repair cross-complementing proteins 5 and 6 in 50 mM Hepes, 50 mM KCl, 5 mM MgCl2, 5% glycerol and 0.2 mM DTT, pH 7.5 were collected on the 12.3.1 (SIBYLS) beam line at the Advanced Light Source (ALS) storage ring (Berkeley, CA, USA) using a Pilatus3 X 2M detector at a sample-detector distance of 2.1 m and at a wavelength of λ = 0.1127 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 55.00 μl sample at 5 mg/ml was injected at a 0.50 ml/min flow rate onto a Shodex KW-800 series column at 20°C. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

X-ray repair cross-complementing protein 6 (KU70)
Mol. type   Protein
Organism   Homo sapiens
Olig. state   Monomer
Mon. MW   69.8 kDa

UniProt   P12956 (1-609)
Sequence   FASTA

X-ray repair cross-complementing protein 5 (KU80)
Mol. type   Protein
Organism   Homo sapiens
Olig. state   Monomer
Mon. MW   82.7 kDa

UniProt   P13010 (1-732)
Sequence   FASTA
