Structural insights into the contactin 1 – neurofascin 155 adhesion complex

Chataigner L, Gogou C, den Boer M, Frias C, Thies-Weesie D, Granneman J, Heck A, Meijer D, Janssen B, Nature Communications 13(1) (2022) DOI

SASDLF6 – High mannose neurofascin 155 immunoglobulin domains 1-6 Thr216Ala, 5.5 μM

Neurofascin T216A
MWI(0) 86 kDa
MWexpected 70 kDa
VPorod 150 nm3
log I(s) 2.51×10-2 2.51×10-3 2.51×10-4 2.51×10-5
Neurofascin T216A small angle scattering data  s, nm-1
ln I(s)

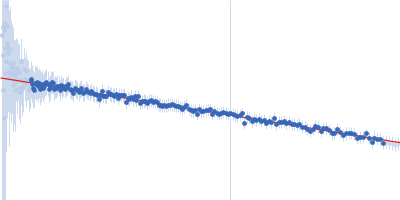

Neurofascin T216A Guinier plot ln 2.52×10-2 Rg: 3.8 nm 0 (3.8 nm)-2 s2
(sRg)2I(s)/I(0)
Neurofascin T216A Kratky plot 1.104 0 3 sRg
Dmax: 14 nm

Data validation


There are no models related to this curve.

Synchrotron SAXS data from solutions of High mannose neurofascin 155 immunoglobulin domains 1-6 Thr216Ala, 5.5 μM in 25 mM HEPES, 150 mM NaCl, pH 7.5 were collected on the B21 beam line at the Diamond Light Source storage ring (Didcot, UK) using a Eiger 4M detector (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 0.38 mg/ml was measured. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

High mannose neurofascin 155 immunoglobulin domains 1-6 Thr216Ala 5.5 μM. Experimental molecular weight=Sequence Expected MW + MW for 4 N glycosylation sites confirmed crystallographically. X-ray wavelength: UNKNOWN. X-ray exposure time: UNKNOWN. Experimental temperature: UNKNOWN.

Neurofascin T216A
Mol. type   Protein
Organism   Mus musculus
Olig. state   Monomer
Mon. MW   69.5 kDa

UniProt   E9PW06 (25-621)
Sequence   FASTA
