Structural insights into the contactin 1 – neurofascin 155 adhesion complex

Chataigner L, Gogou C, den Boer M, Frias C, Thies-Weesie D, Granneman J, Heck A, Meijer D, Janssen B, Nature Communications 13(1) (2022) DOI

SASDLW6 – High mannose glycan contactin 1 ectodomain, 11.1 μM

Contactin-1 I433V
MWI(0) 153 kDa
MWexpected 220 kDa
VPorod 275 nm3
log I(s) 1.40×10-1 1.40×10-2 1.40×10-3 1.40×10-4
Contactin-1 I433V small angle scattering data  s, nm-1
ln I(s)

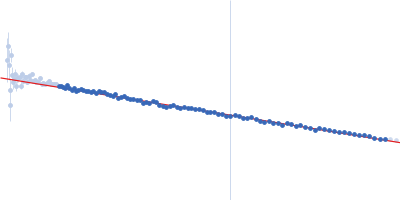

Contactin-1 I433V Guinier plot ln 1.41×10-1 Rg: 6.8 nm 0 (6.8 nm)-2 s2
Contactin-1 I433V Kratky plot 1.104 0 3 sRg
Dmax: 27 nm

Data validation

There are no models related to this curve.

Synchrotron SAXS data from solutions of High mannose glycan contactin 1 ectodomain, 11.1 μM in 25 mM HEPES, 150 mM NaCl, pH 7.5 were collected on the B21 beam line at the Diamond Light Source storage ring (Didcot, UK) using a Eiger 4M detector (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 1.22 mg/ml was measured. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

High mannose glycan contactin 1 ectodomain 11.1μM. Experimental molecular weight=Sequence Expected MW + MW for 6 N glycosylation sites confirmed crystallographically. X-ray wavelength: UNKNOWN. X-ray exposure time: UNKNOWN. Experimental temperature: UNKNOWN.

Contactin-1 I433V
Mol. type   Protein
Organism   Mus musculus
Olig. state   Dimer
Mon. MW   109.8 kDa
UniProt   P12960 (21-996)
Sequence   FASTA
