Biomolecular Small-Angle Scattering Data Reproducibility and Consensus Curves for Benchmarking

Jill Trewhella.

SASDPY4 – Consensus SANS Profile - Xylose isomerase in 100% v/v D2O buffer

Xylose isomerase
MWexperimental 173 kDa
MWexpected 173 kDa
log I(s) 1.09×100 1.09×10-1 1.09×10-2 1.09×10-3
Xylose isomerase small angle scattering data  s, nm-1
ln I(s)
Xylose isomerase Guinier plot ln 1.09×100 Rg: 3.1 nm 0 (3.1 nm)-2 s2
(sRg)2I(s)/I(0)

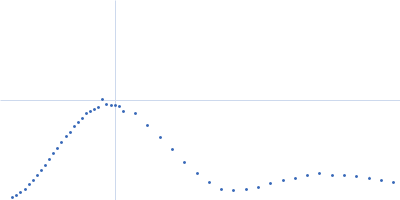

Xylose isomerase Kratky plot 1.104 0 3 sRg
p(r)
Xylose isomerase pair distance distribution function Rg: 3.1 nm 0 Dmax: 9.5 nm

Data validation


Fits and models


log I(s)
 s, nm-1
Xylose isomerase PDB (PROTEIN DATA BANK) model

log I(s)
 s, nm-1
Xylose isomerase PDB (PROTEIN DATA BANK) model

log I(s)
 s, nm-1
Xylose isomerase OTHER model

The consensus SANS profile for xylose isomerase in D2O buffer is the consensus batch data set generated using the datcombine tool (ATSAS 3.1.0) with both outlier- and error-filters applied. Six batch data sets were input to datcombine. All contributing data were independent measurements, and no individual measurement was represented more than once in the contributing scattering profile set. The buffer was 50 mM Tris, pH 7.5, 100 mM NaCl, 1 mM MgCl2. Protein concentrations for batch measurements ranged from 1 – 6.8 mg/mL. The xylose isomerase atomistic model for CRYSON and Pepsi-SANS fits was the PBD ID 1MNZ tetramer with an N-terminal Met added using PyMol, and small-molecule crystallisation agents removed. Custom WAXSiS-type calculations (with neutron scattering factors and Gromacs software) used the same coordinates and added explicit waters and appropriate number of ions for the MD calculations.

The data input to datcombine are made available for download in the associated zip file, including also the unsubtracted 6 column format data with resolution data. Model fits are shown in order (top to bottom): CRYSON, Pepsi-SANS, and custom WAXSiS (with neutron scattering factors). The quoted pH value is the direct pH meter reading (pD uncorrected), as per modern practice.

Tags: benchmark
Xylose isomerase
Mol. type   Protein
Organism   Streptomyces rubiginosus
Olig. state   Tetramer
Mon. MW   43.2 kDa

UniProt   P24300 (1-388)
Sequence   FASTA

PDB ID   1MNZ

PDB ID   1MNZ
