Crosstalk between regulatory elements in disordered TRPV4 N-terminus modulates lipid-dependent channel activity

Goretzki B, Wiedemann C, McCray B, Schäfer S, Jansen J, Tebbe F, Mitrovic S, Nöth J, Cabezudo A, Donohue J, Jeffries C, Steinchen W, Stengel F, Sumner C, Hummer G, Hellmich U, Nature Communications 14(1) (2023) DOI

SASDQE8 – G. gallus TRPV4 Ankyrin Repeat Domain

Transient receptor potential cation channel subfamily V member 4
MWexperimental 28 kDa
MWexpected 28 kDa
VPorod 41 nm3
log I(s) 3.59×103 3.59×102 3.59×101 3.59×100
Transient receptor potential cation channel subfamily V member 4 small angle scattering data  s, nm-1
ln I(s)

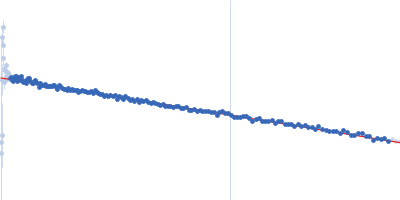

Transient receptor potential cation channel subfamily V member 4 Guinier plot ln 3.60×103 Rg: 2.3 nm 0 (2.3 nm)-2 s2
(sRg)2I(s)/I(0)

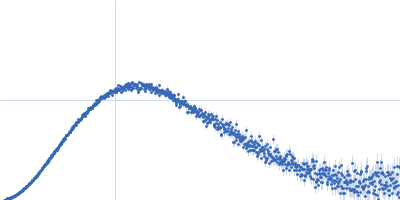

Transient receptor potential cation channel subfamily V member 4 Kratky plot 1.104 0 √3 sRg

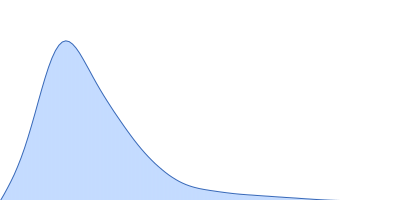

p(r)
Transient receptor potential cation channel subfamily V member 4 pair distance distribution function Rg: 2.5 nm 0 Dmax: 11.5 nm

Data validation

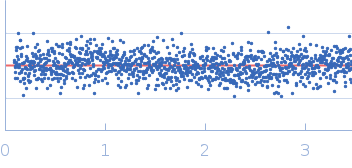

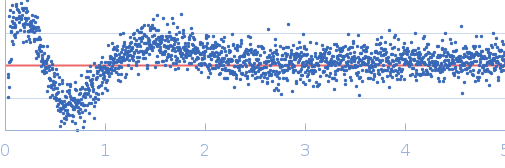

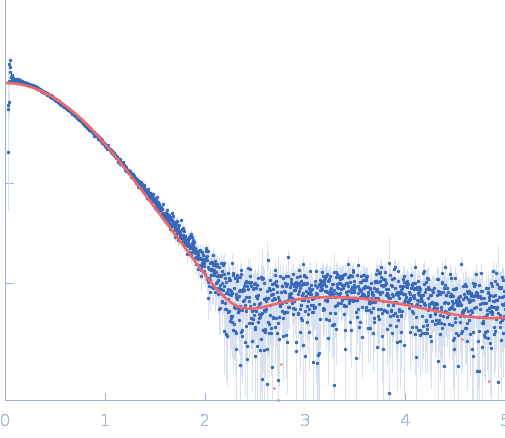

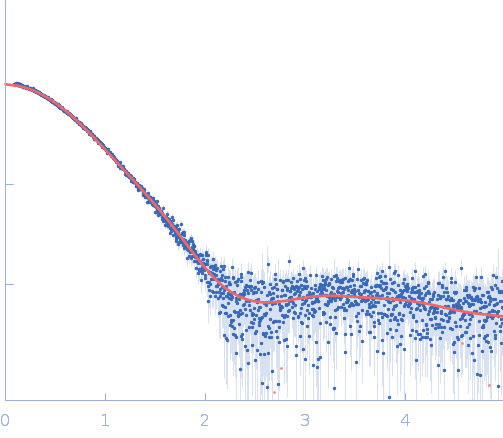

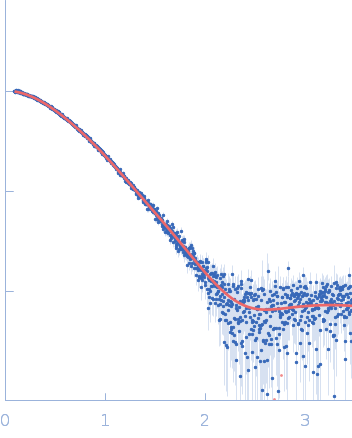

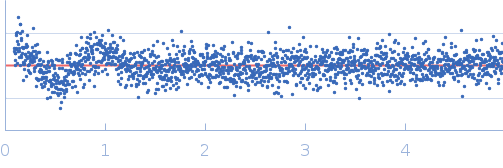

Fits and models

log I(s)
 s, nm-1
Transient receptor potential cation channel subfamily V member 4 PYMOL model
log I(s)
 s, nm-1

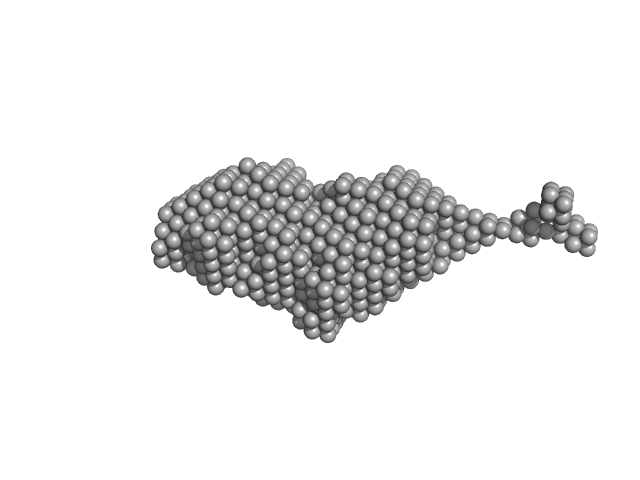

Transient receptor potential cation channel subfamily V member 4 DAMMIN model
log I(s)
 s, nm-1
Transient receptor potential cation channel subfamily V member 4 PDB (PROTEIN DATA BANK) model
Transient receptor potential cation channel subfamily V member 4 SREFLEX model
Synchrotron SAXS data from solutions of the TRPV4 ankyrin repeat domain in 20 mM Tris, 300 mM NaCl, 10 mM DTT, pH 7 were collected on the EMBL P12 beam line at PETRA III (DESY, Hamburg, Germany) using a Pilatus 6M detector at a sample-detector distance of 3 m and at a wavelength of λ = 0.124 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 40.00 μl sample at 10.7 mg/ml was injected at a 0.30 ml/min flow rate onto a GE Superdex 200 Increase 5/150 column at 20°C. 2400 successive 0.250 second frames were collected through the entire SEC elution profile, where 67 frames were processed through the sample elution peak. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

The molecule contains the isolated Ankyrin repeat domain from G. gallus TRPV4, spanning residues F135-D382. It consists of six Ankyrin repeats in total. The individual, unsubtracted SEC-SAXS data frames and additional modelling results are made available in the full entry zip archive.

Transient receptor potential cation channel subfamily V member 4 (TRPV4)
Mol. type   Protein
Organism   Gallus gallus
Olig. state   Monomer
Mon. MW   28.0 kDa

UniProt   A0A1D5PXA5 (135-382)
Sequence   FASTA

PDB ID   3W9G
