| MWexperimental | 50 | kDa |
| MWexpected | 52 | kDa |
| VPorod | 77 | nm3 |
|

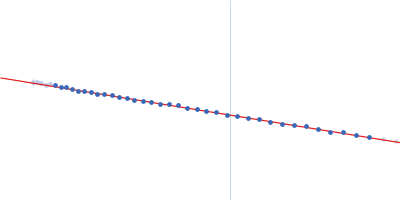

log I(s)
2.23×10-2
2.23×10-3
2.23×10-4
2.23×10-5
|
s, nm-1
|
Solution structures of DEAD-box helicase DDX3X reveal the N-terminal extension binds RNA to modulate catalysis and influence conformation
Sarah Atkinson.SASDR95 – ATP-dependent RNA helicase DDX3X (amino acids 135-580)
ATP-dependent RNA helicase DDX3X (truncation; amino acids 135-580)|
|
|

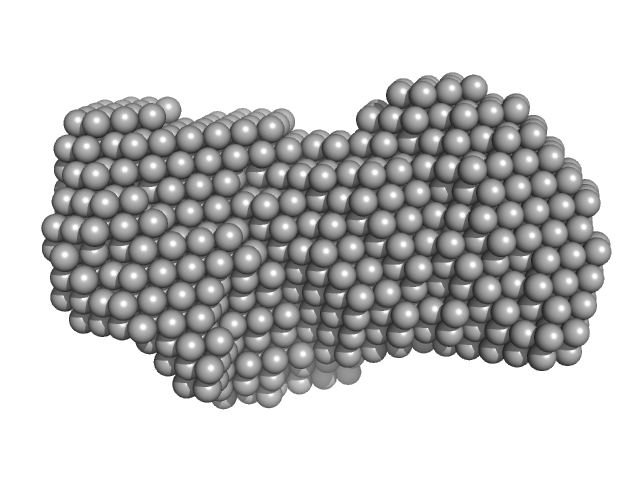

Fits and models
|
|
|
Synchrotron SAXS data from solutions of ATP-dependent RNA helicase DDX3X (135-580) in 20 mM Tris, 150 mM NaCl, 10% (v/v) glycerol, 1 mM TCEP, pH 8 were collected on the SAXS/WAXS beam line at the Australian Synchrotron (Melbourne, Australia) using a Pilatus 1M detector at a sample-detector distance of 1.4 m and at a wavelength of λ = 0.103 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 50.00 μl sample at 10 mg/ml was injected at a 0.30 ml/min flow rate onto a GE Superdex 200 5/150 column at 16°C. 51 successive 1 second frames were collected through the sample SEC elution peak. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.
|
|
|||||||||||||||||||||||||||
