Synchrotron SAXS data from solutions of rabies CVS phosphoprotein (P1) in 25 mM HEPES, 150 mM NaCl, 1 mM TCEP, pH 7.4 were collected on the SAXS/WAXS beam line at the Australian Synchrotron (Melbourne, Australia) using a Pilatus3 S 2M detector at a sample-detector distance of 3.3 m and at a wavelength of λ = 0.10332 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 50.00 μl sample at 5 mg/ml was injected at a 0.40 ml/min flow rate onto a GE Superose 6 5/150 column at 22°C. Twenty three 1 second frames were collected through the SEC elution peak. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.
|
|

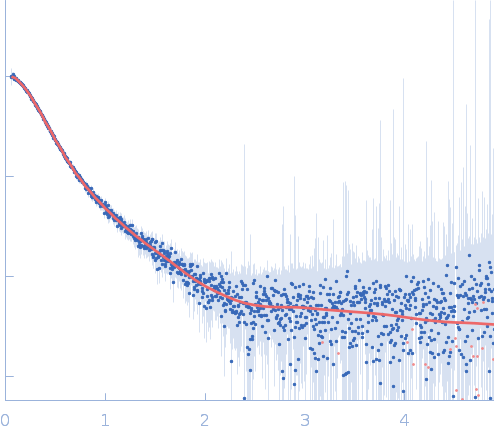

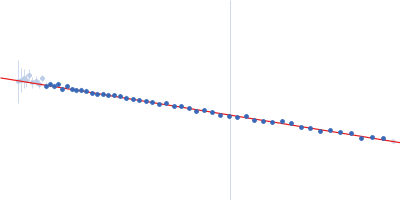

s, nm-1
Rg, nm
