UBQLN2 domain deletion constructs

Sarasi Galagedera.

SASDSE6 – Human Ubiquilin-2, ∆1-108 N-terminal deletion (UBQLN2 109-624)

Ubiquilin-2 (∆1-108)
MWI(0) 104 kDa
MWexpected 108 kDa
VPorod 281 nm3
log I(s) 2.55×100 2.55×10-1 2.55×10-2 2.55×10-3
Ubiquilin-2 (∆1-108) small angle scattering data  s, nm-1
ln I(s)

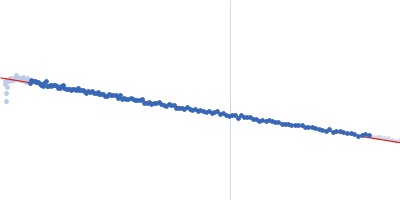

Ubiquilin-2 (∆1-108) Guinier plot ln 2.55×100 Rg: 5.2 nm 0 (5.2 nm)-2 s2
(sRg)2I(s)/I(0)
Ubiquilin-2 (∆1-108) Kratky plot 1.104 0 √3 sRg
p(r)

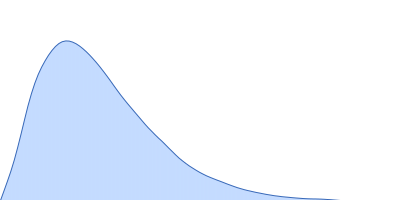

Ubiquilin-2 (∆1-108) pair distance distribution function Rg: 5.5 nm 0 Dmax: 23.3 nm

Data validation

There are no models related to this curve.

Synchrotron SAXS data from solutions of Human Ubiquilin-2, ∆1-108 N-terminal deletion (UBQLN2 109-624) in 20 mM sodium phosphate, 0.5 mM EDTA, 0.02 % NaN3, pH 6.8 were collected on the BioCAT 18ID beam line at the Advanced Photon Source (APS), Argonne National Laboratory storage ring (Lemont, IL, USA) using a Pilatus3 X 1M detector at a sample-detector distance of 3.7 m and at a wavelength of λ = 0.1033 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 300.00 μl sample at 2.2 mg/ml was injected at a 0.60 ml/min flow rate onto a GE Superdex 200 Increase 10/300 column at 20°C. 31 successive 0.500 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Ubiquilin-2 (∆1-108) (UBQLN2 109-624)
Mol. type   Protein
Organism   Homo sapiens
Olig. state   Dimer
Mon. MW   54.2 kDa

UniProt   Q9UHD9 (109-624)
Sequence   FASTA
