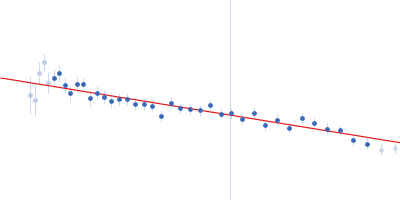

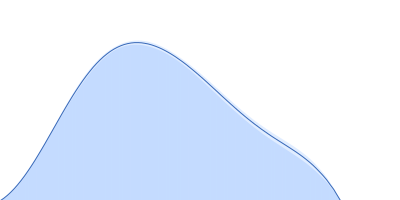

The SAXS data from the solution of Codanin1 Cterm diluted in 20 mM Tris HCl, 150 mM NaCl, pH 8.0 buffer were collected using a SAXSpoint 2.0 (Anton Paar, Graz, Austria) equipped with a MetalJet C2+ X-ray source (Excillum, Stockholm, Sweden) and an Eiger R 1M detector (Dectris, Baden, Switzerland) at a sample-detector distance of 0.8 m and at a wavelength of λ = 0.134 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAXS was employed. The sample (200 μl at 10 mg/ml) was injected and ran into a GE Superdex 200 Increase column at a flow rate of 0.7 ml/min at 20°C. Scattering data were collected throughout the entire SEC column elution with an exposure time of 15 sec/frame (for 1800 frames total). The data were normalized to the intensity of the transmitted beam. The sample elution peak was selected and processed (averaged and buffer subtracted) from 38 data frames using CHROMIXS and primusqt from the ATSAS 3.0.5 package. The radius of gyration (Rg), forward scattering (I(0)), maximum particle dimension (Dmax), and the distance distribution function were determined using primusqt and GNOM. The calculated molecular weight (MW) of Codanin1 Cterm is around 142 kDa. MALDI-TOF mass spectrometry suggests a MW 24 965 Da for Codanin1 Cterm monomer. The MW estimation from the SAXS data (primusqt) varied depending on the method used: Qp = 134.7 kDa, MoW = 125.6 kDa, Vc = 123.8 kDa, Size & Shape = 142.8 kDa (Bayesian Inference MW, 125.5 kDa in the 95% credibility interval of 116-134 kDa). The models displayed in this entry included: Top: The Alphafold2 predicted model of Codanin1 Cterm tetramer compared with the SAXS data using CRYSOL. Middle: The Alphafold2 predicted model of Codanin1 Cterm dimer compared with the SAXS data using CRYSOL. Bottom: The Alphafold2 predicted model of Codanin1 Cterm monomer compared with the SAXS data using CRYSOL.
|
|
s, nm-1
