The dimerized pentraxin-like domain of the adhesion G protein-coupled receptor 112 (ADGRG4) suggests function in sensing mechanical forces.

Kieslich B, Weiße RH, Brendler J, Ricken A, Schöneberg T, Sträter N, J Biol Chem :105356 (2023) Europe PMC

SASDSJ8 – Adhesion G protein-coupled receptor G4 PTX-like domain at 4.37 mg/mL

Adhesion G-protein coupled receptor G4
MWexperimental 42532 kDa
MWexpected 55 kDa
VPorod 76 nm3
log I(s) 3.32×10-2 3.32×10-3 3.32×10-4 3.32×10-5
Adhesion G-protein coupled receptor G4 small angle scattering data  s, nm-1
ln I(s)

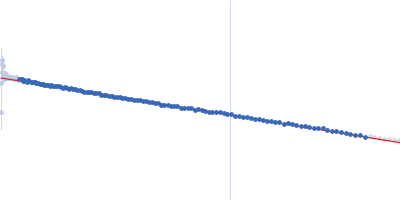

Adhesion G-protein coupled receptor G4 Guinier plot ln 3.33×10-2 Rg: 3.0 nm 0 (3.0 nm)-2 s2
(sRg)2I(s)/I(0)

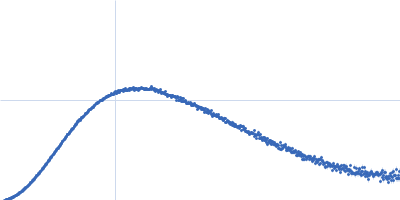

Adhesion G-protein coupled receptor G4 Kratky plot 1.104 0 √3 sRg

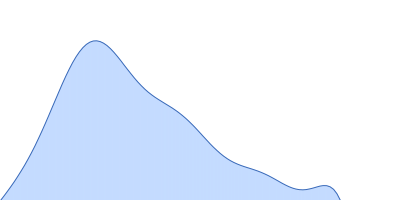

p(r)
Adhesion G-protein coupled receptor G4 pair distance distribution function Rg: 3.1 nm 0 Dmax: 9.9 nm

Data validation

Fits and models

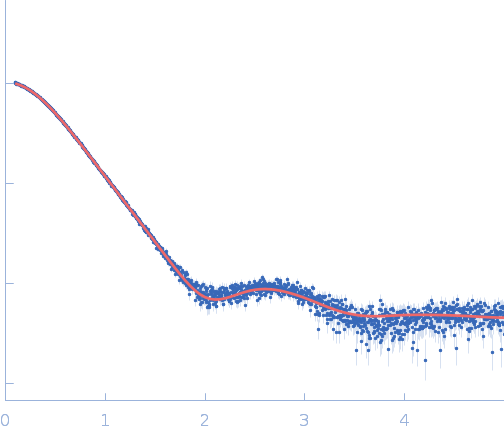

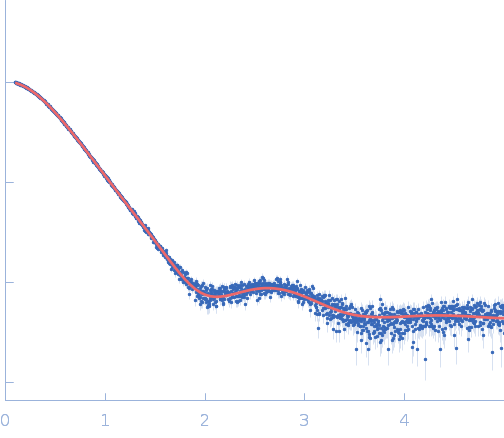

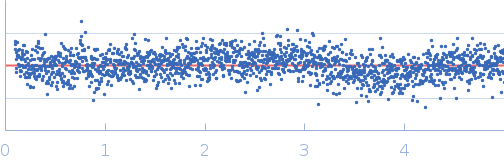

log I(s)
 s, nm-1

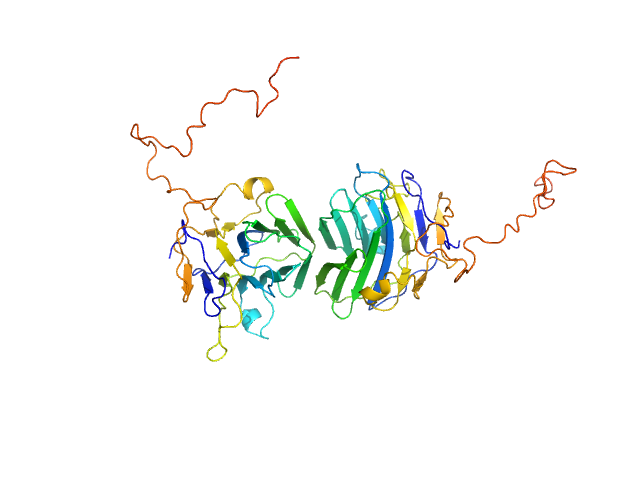

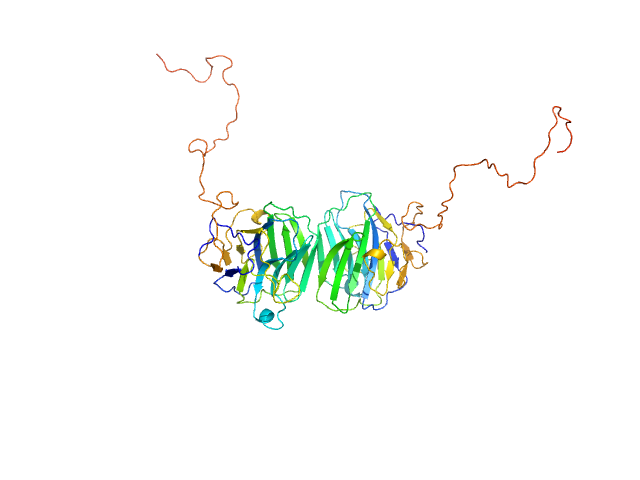

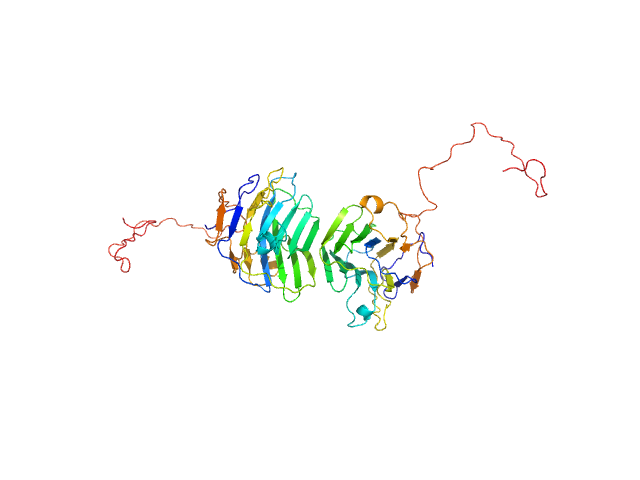

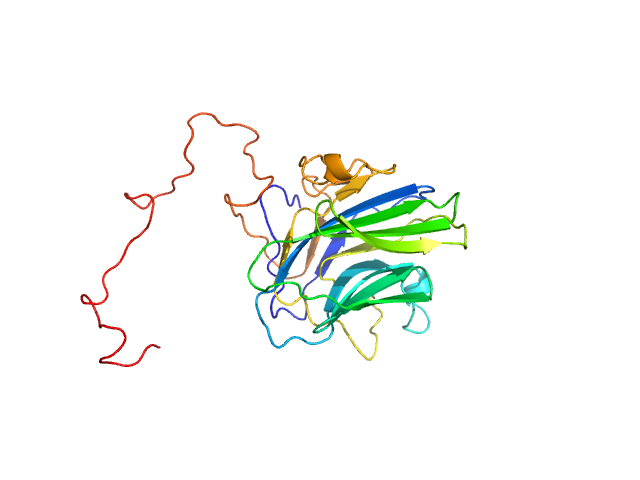

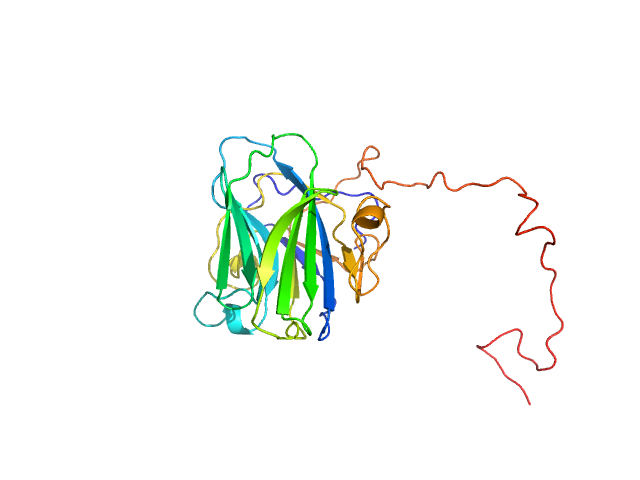

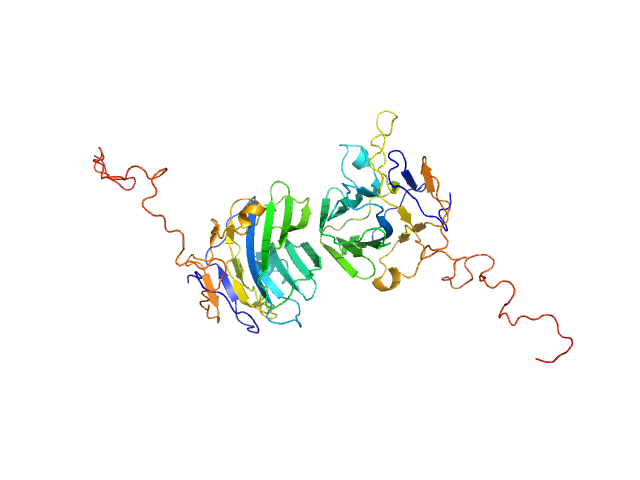

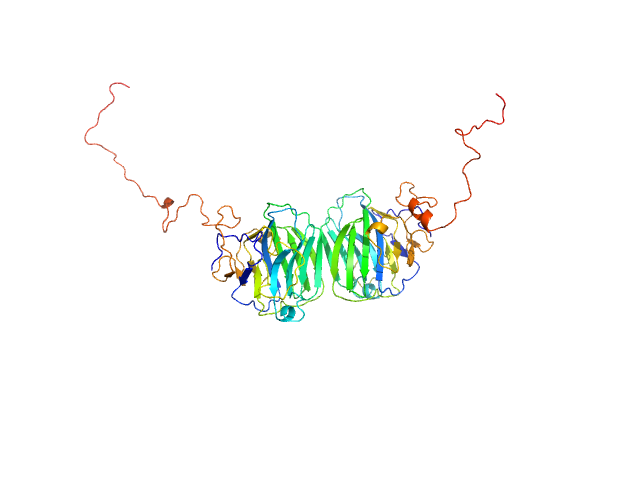

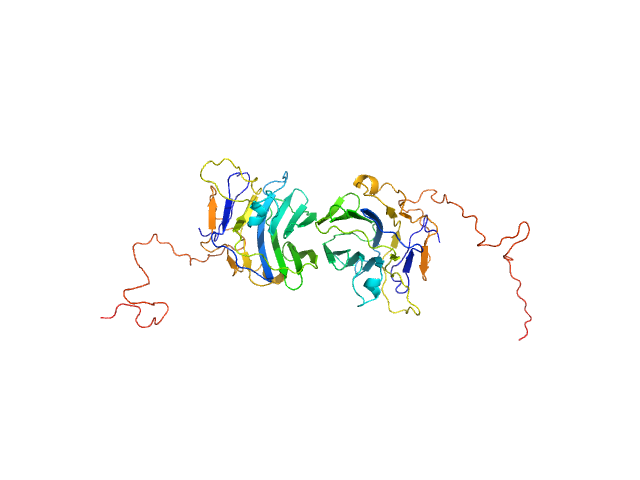

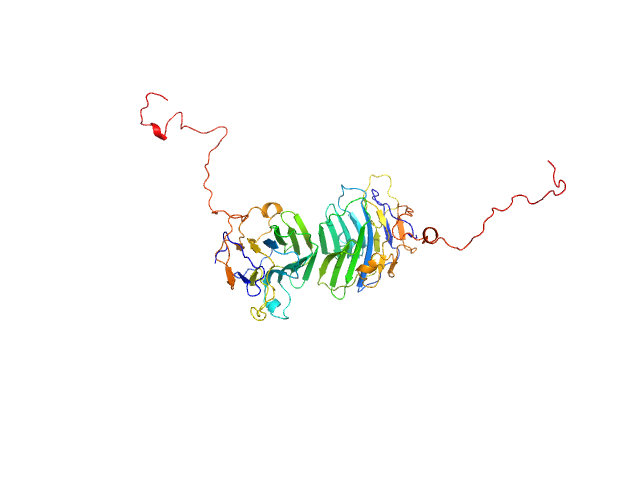

Adhesion G-protein coupled receptor G4 EOM/RANCH model
Adhesion G-protein coupled receptor G4 EOM/RANCH model
Adhesion G-protein coupled receptor G4 EOM/RANCH model
Adhesion G-protein coupled receptor G4 EOM/RANCH model
Adhesion G-protein coupled receptor G4 EOM/RANCH model
Adhesion G-protein coupled receptor G4 EOM/RANCH model
Adhesion G-protein coupled receptor G4 EOM/RANCH model
log I(s)
 s, nm-1
Adhesion G-protein coupled receptor G4 EOM/RANCH model
Adhesion G-protein coupled receptor G4 EOM/RANCH model
Adhesion G-protein coupled receptor G4 EOM/RANCH model
Adhesion G-protein coupled receptor G4 EOM/RANCH model
Adhesion G-protein coupled receptor G4 EOM/RANCH model
Adhesion G-protein coupled receptor G4 EOM/RANCH model
Adhesion G-protein coupled receptor G4 EOM/RANCH model
Adhesion G-protein coupled receptor G4 EOM/RANCH model
log I(s)
 s, nm-1
Adhesion G-protein coupled receptor G4 EOM/RANCH model
Adhesion G-protein coupled receptor G4 EOM/RANCH model
Adhesion G-protein coupled receptor G4 EOM/RANCH model
Adhesion G-protein coupled receptor G4 EOM/RANCH model
Adhesion G-protein coupled receptor G4 EOM/RANCH model
Adhesion G-protein coupled receptor G4 EOM/RANCH model
Synchrotron SAXS data from solutions of Adhesion G protein-coupled receptor G4 PTX-like domain in 20 mM Tris-HCl, 150 mM NaCl, 5% (w/v) glycerol, pH 8 were collected on the EMBL P12 beam line at PETRA III (DESY; Hamburg, Germany) using a Pilatus 6M detector at a sample-detector distance of 3 m and at a wavelength of λ = 0.123987 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 4.37 mg/ml was measured at 35°C. 24 successive 0.195 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Adhesion G-protein coupled receptor G4 (G4-PTX)
Mol. type   Protein
Organism   Homo sapiens
Olig. state   Dimer
Mon. MW   27.4 kDa

UniProt   Q8IZF6 (26-240)
Sequence   FASTA
