RNase P RNA conformational space

Maximilia Frazao de Souza Degenhardt.

SASDTB7 – RNase P RNA in the presence of 1.0 mM MgCl2

RNase P RNA
MWexperimental 146 kDa
MWexpected 135 kDa
VPorod 370 nm3
log I(s) 1.98×101 1.98×100 1.98×10-1 1.98×10-2
RNase P RNA small angle scattering data  s, nm-1
ln I(s)

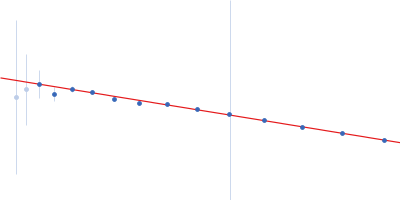

RNase P RNA Guinier plot ln 1.99×101 Rg: 5.2 nm 0 (5.2 nm)-2 s2
(sRg)2I(s)/I(0)
RNase P RNA Kratky plot 1.104 0 3 sRg
p(r)
RNase P RNA pair distance distribution function Rg: 5.1 nm 0 Dmax: 15.6 nm

Data validation


There are no models related to this curve.

SAXS data from solutions of RNase P RNA in 100 mM NaCl, 1 mM MgCl2, pH 7.5 were collected using a Rigaku BIOSAXS-2000 instrument at the Center for Cancer Research (National Cancer Institute, Frederick MD USA) equipped with a Rigaku/P100K detector at a sample-detector distance of 0.5 m and at a wavelength of λ = 0.154 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 0.55 mg/ml was measured at 10°C. Eight successive 900 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

The sample was freshly prepared and the data collected just after SEC separation.

RNase P RNA (RNase P)
Mol. type   RNA
Organism   Geobacillus stearothermophilus
Olig. state   Monomer
Mon. MW   135.4 kDa
Sequence   FASTA
