SASDTX8 – Streptococcus pyogenes glycine cleavage system H-like protein

Glycine cleavage system H-like protein
MWexperimental 13 kDa
MWexpected 13 kDa
VPorod 22 nm3
log I(s) 3.81×10-3 3.81×10-4 3.81×10-5 3.81×10-6
Glycine cleavage system H-like protein small angle scattering data  s, nm-1
ln I(s)

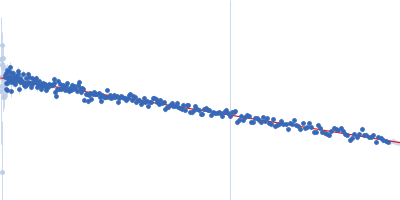

Glycine cleavage system H-like protein Guinier plot ln 3.82×10-3 Rg: 1.5 nm 0 (1.5 nm)-2 s2
(sRg)2I(s)/I(0)

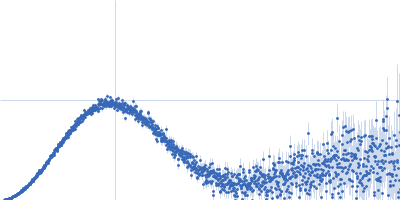

Glycine cleavage system H-like protein Kratky plot 1.104 0 3 sRg
p(r)

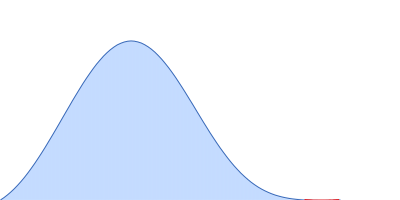

Glycine cleavage system H-like protein pair distance distribution function Rg: 1.5 nm 0 Dmax: 5 nm

Data validation

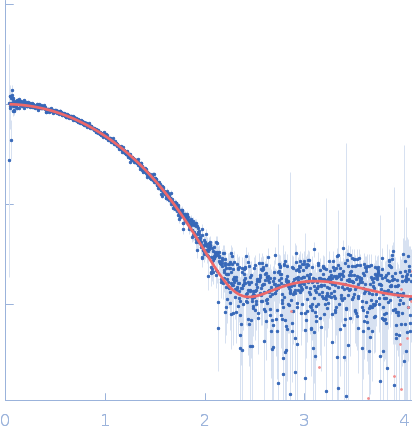

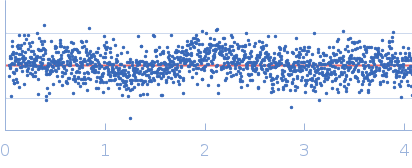

Fits and models


log I(s)
 s, nm-1
Glycine cleavage system H-like protein PDB (PROTEIN DATA BANK) model

Synchrotron SAXS data from solutions of Streptococcus pyogenes glycine cleavage system H-like protein in 50 mM Tris-HCl, 200 mM NaCl, 1 mM DTT, 5% (v/v) glycerol, pH 8 were collected on the B21 beam line at the Diamond Light Source (Didcot, UK) using a Pilatus 2M detector at a sample-detector distance of 3.9 m and at a wavelength of λ = 0.1 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 45.00 μl sample at 6 mg/ml was injected at a 0.08 ml/min flow rate onto a Shodex KW402.5-4F column at 15°C. 600 successive 3 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Glycine cleavage system H-like protein (SpyGcvH-L)
Mol. type   Protein
Organism   Streptococcus pyogenes serotype M5 (strain Manfredo)
Olig. state   Monomer
Mon. MW   13.2 kDa

UniProt   P0DN69 (1-110)
Sequence   FASTA

PDB ID   5A35
