| MWexperimental | 104 | kDa |
| MWexpected | 109 | kDa |
| VPorod | 428 | nm3 |
|
log I(s)
5.14×103
5.14×102
5.14×101
5.14×100
|
s, nm-1
|
Preorganized cyclic modules facilitate the self-assembly of protein nanostructures
Snoj J, Lapenta F, Jerala R, Chemical Science (2024) DOISASDUS2 – SB24-ncn (coiled coil protein origami irregular octahedron assembled from 2 linear chains and 1 cyclic chain)
SB9b (Linear coiled-coil protein origami structure consisting of 9 coiled-coil forming segments)SB9c (Linear coiled-coil protein origami structure consisting of 9 coiled-coil forming segments)
cySB6 (Cyclic coiled-coil protein origami structure consisting of 6 coiled-coil forming segments)
|
|
|

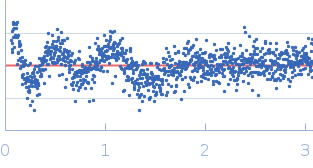

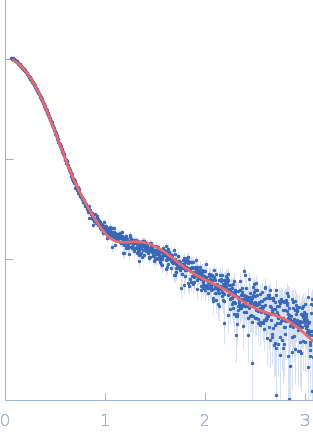

Fits and models
|
|
|
Synchrotron SAXS data from solutions of SB24-ncn in 20 mM Tris, 150 mM NaCL, 3% glycerol, 1mM TCEP, pH 7.5 were collected on the EMBL P12 beam line at PETRA III (DESY; Hamburg, Germany) using a Pilatus 6M detector at a sample-detector distance of 3 m and at a wavelength of λ = 0.124 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 90.00 μl sample at 16.2 mg/ml was injected at a 0.75 ml/min flow rate onto a Cytiva Superdex 200 10/300 column at 20°C. 2400 successive 0.995 second frames were collected through the entire SEC elution. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.
The experimental molecular weight quoted in this entry was evaluated using SEC-MALS combined with the refractive index (RI) measured before the SAXS measurements. |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
