Plasmodium falciparum nucleoplasmin (PfNPM)

Ketul Saharan.

SASDVQ2 – Nucleoplasmin-like domain-containing protein PfNPM (1-98)

Nucleoplasmin-like domain-containing protein
MWexperimental 60 kDa
MWexpected 60 kDa
VPorod 98 nm3
log I(s) 1.62×102 1.62×101 1.62×100 1.62×10-1
Nucleoplasmin-like domain-containing protein small angle scattering data  s, nm-1
ln I(s)
Nucleoplasmin-like domain-containing protein Guinier plot ln 1.63×102 Rg: 2.4 nm 0 (2.4 nm)-2 s2
(sRg)2I(s)/I(0)
Nucleoplasmin-like domain-containing protein Kratky plot 1.104 0 √3 sRg
p(r)
Nucleoplasmin-like domain-containing protein pair distance distribution function Rg: 2.4 nm 0 Dmax: 7.0 nm

Data validation

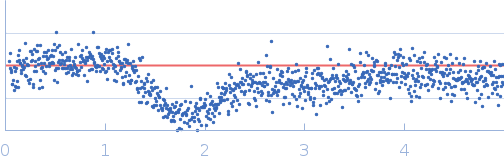

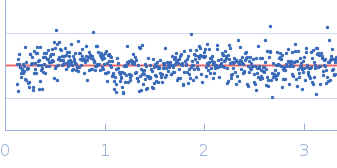

Fits and models

log I(s)
 s, nm-1

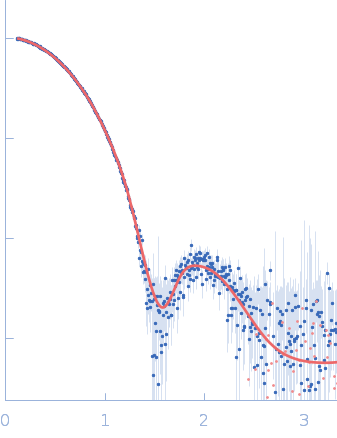

Nucleoplasmin-like domain-containing protein DAMMIF model
log I(s)
 s, nm-1

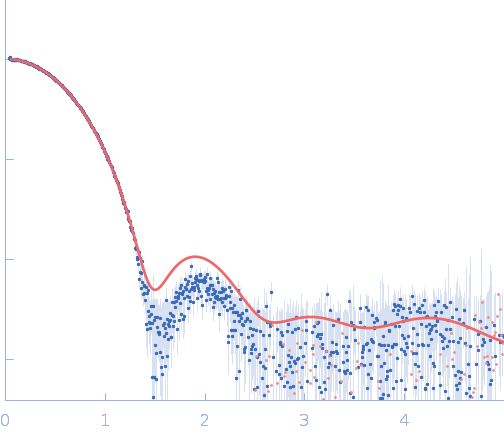

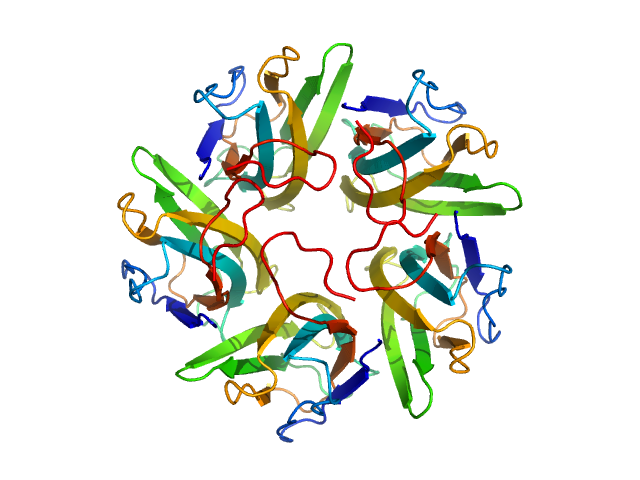

Nucleoplasmin-like domain-containing protein ALPHAFOLD model
Synchrotron SAXS data from solutions of Nucleoplasmin-like domain-containing protein PfNPM (1-98) in 20 mM tris, 150 mM NaCl and 2 mM β-mercaptoethanol, pH 7.5 were collected on the BM29 beam line at the ESRF storage ring (Grenoble, France) using a Pilatus3 2M detector at a sample-detector distance of 2.9 m and at a wavelength of λ = 0.09794 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 1.00 mg/ml was measured at 20°C. 10 successive 20 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Nucleoplasmin-like domain-containing protein (PfNPM)
Mol. type   Protein
Organism   Plasmodium falciparum (isolate 3D7)
Olig. state   Pentamer
Mon. MW   12.0 kDa

UniProt   C0H4U4 (1-98)
Sequence   FASTA
