| MWexperimental | 129 | kDa |
| MWexpected | 131 | kDa |
| VPorod | 229 | nm3 |
|
log I(s)
9.70×101
9.70×100
9.70×10-1
9.70×10-2
|
s, nm-1
|
Plasmodium falciparum nucleoplasmin (PfNPM)
Ketul Saharan.SASDVT2 – Nucleoplasmin-like domain-containing protein PfNPM (1-170) - H2A/H2B histone oligomer complex
PfNPM A3 (1-170)Histone H2A type 1-B/E
Histone H2B type 1-C/E/F/G/I
|
|
|

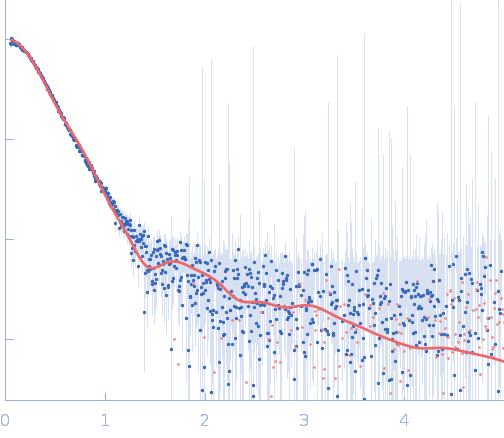

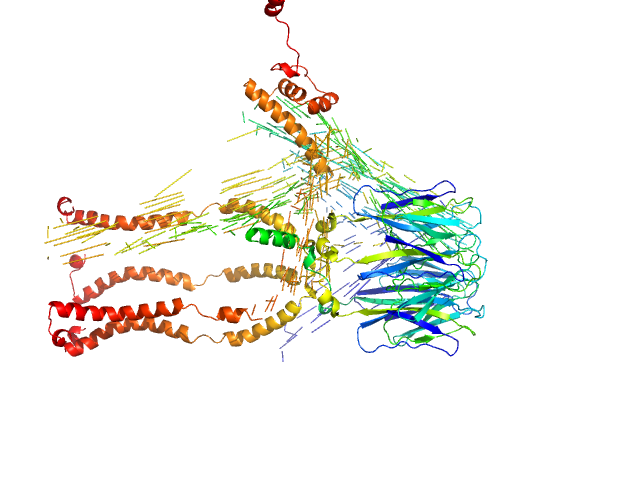

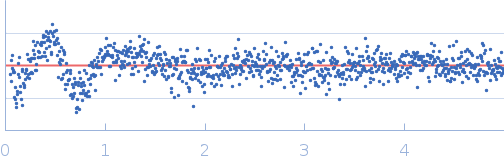

Fits and models
|
|
|
|
|
Synchrotron SAXS
data from solutions of
Nucleoplasmin-like domain-containing protein PfNPM (1-170) - H2A/H2B histone oligomer complex
in
20 mM Tris, 150 mM NaCl, 2 mM β-mercaptoethanol, pH 7.5
were collected
on the
BM29 beam line
at the ESRF storage ring
(Grenoble, France)
using a Pilatus3 2M detector
at a sample-detector distance of 2.9 m and
at a wavelength of λ = 0.09794 nm
(I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle).
One solute concentration of 1.00 mg/ml was measured
at 20°C.
10 successive
20 second frames were collected.
The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
