Structure of the Thomasclavelia ramosa immunoglobulin A protease reveals a modular and minimizable architecture distinct from other immunoglobulin A proteases

Norman Tran.

SASDWK3 – Thomasclavelia ramosa immunoglobulin A protease middle domain with C-terminal domain #1

IgA protease
MWexperimental 56 kDa
MWexpected 63 kDa
VPorod 89 nm3
log I(s) 7.04×10-2 7.04×10-3 7.04×10-4 7.04×10-5
IgA protease small angle scattering data  s, nm-1

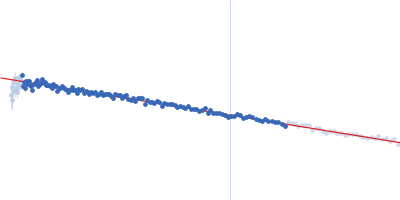

ln I(s)
IgA protease Guinier plot ln 7.05×10-2 Rg: 2.7 nm 0 (2.7 nm)-2 s2

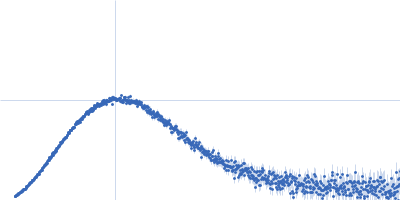

(sRg)2I(s)/I(0)
IgA protease Kratky plot 1.104 0 √3 sRg

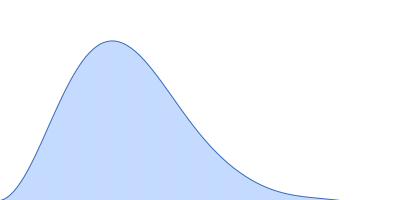

p(r)
IgA protease pair distance distribution function Rg: 2.7 nm 0 Dmax: 9.2 nm

Data validation

Fits and models

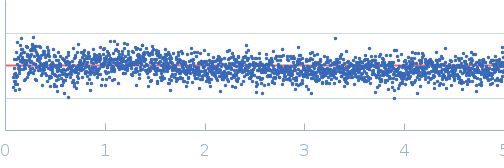

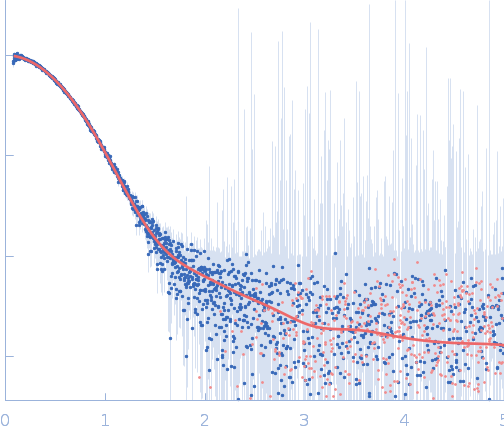

log I(s)
 s, nm-1
IgA protease PHENIX model
Synchrotron SAXS data from solutions of Thomasclavelia ramosa immunoglobulin A protease middle domain with C-terminal domain #1 in 25 mM HEPES, 1 mM TCEP, pH 7.5 were collected on the ID7A1 BioSAXS / HP-Bio Beamline beam line at the Cornell High Energy Synchrotron Source (CHESS) storage ring (Ithaca, NY, USA) using a Eiger 4M detector at a wavelength of λ = 0.11013 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 1.60 mg/ml was measured at 25°C. 15 successive 1 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Sample detector distance = UNKNOWN

IgA protease (IgAP MD+CTD1)
Mol. type   Protein
Organism   Thomasclavelia ramosa
Olig. state   Monomer
Mon. MW   62.5 kDa

UniProt   Q9AES2 (329-876)
Sequence   FASTA
