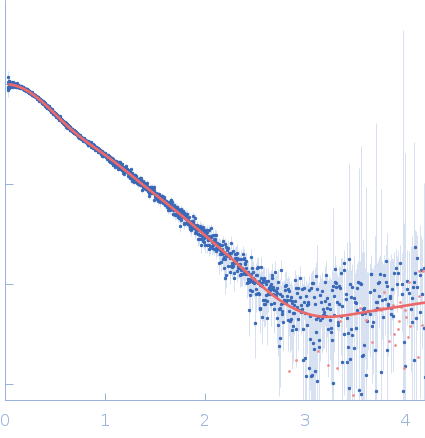

Synchrotron SAXS data from solutions of precursor microRNA 20a in 50 mM potassium phosphate buffer, 1 mM MgCl2, 50 mM NaCl, 5 mM BME, pH 7.5 were collected on the BioCAT 18ID beam line at the Advanced Photon Source (APS), Argonne National Laboratory (Lemont, IL, USA) using a Eiger2 XE 9M detector at a sample-detector distance of 3.7 m and at a wavelength of λ = 0.1033 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 260.00 μl sample at 1.3 mg/ml was injected at a 0.60 ml/min flow rate onto a GE Superdex 75 Increase 10/300 column at 22°C. 36 successive 0.500 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.
NMR/SAXS construct of pre-miR-20a. An additional non-native G-C base pair is added at the ends of the RNA to stabilize the fold.
|
|
s, nm-1
