Lysozyme pH 7.4 with models

Anthony Giannetti.

SASDYJ2 – Hen Egg White Lysozyme pH 7.4

Hen egg white lysozyme
MWI(0) 11 kDa
MWexpected 14 kDa
VPorod 23 nm3
log I(s) 1.25×102 1.25×101 1.25×100 1.25×10-1
Hen egg white lysozyme small angle scattering data  s, nm-1
ln I(s)

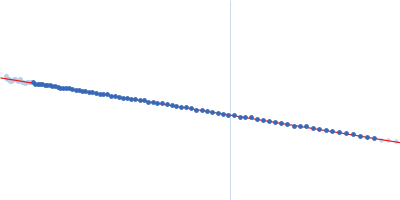

Hen egg white lysozyme Guinier plot ln 1.26×102 Rg: 1.6 nm 0 (1.6 nm)-2 s2
(sRg)2I(s)/I(0)

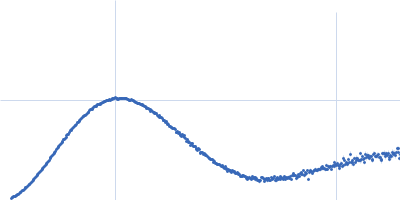

Hen egg white lysozyme Kratky plot 1.104 0 √3 sRg
p(r)
Hen egg white lysozyme pair distance distribution function Rg: 1.6 nm 0 Dmax: 59 nm

Data validation

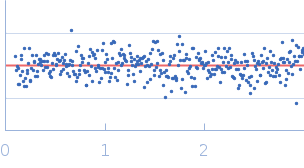

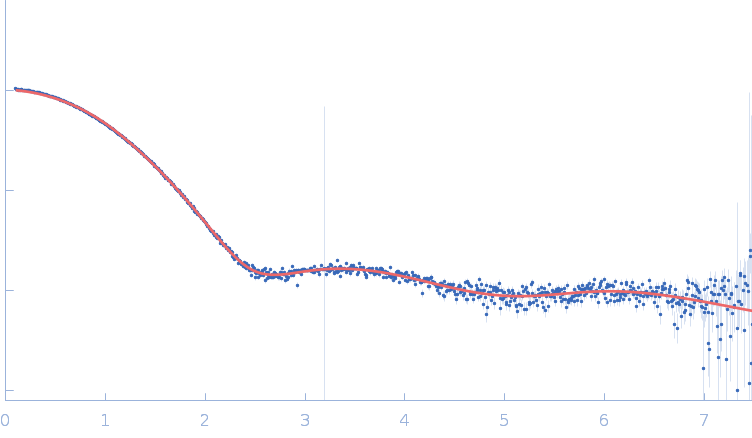

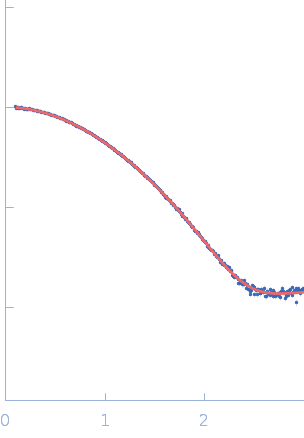

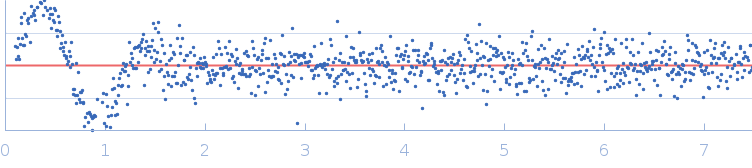

Fits and models

log I(s)
 s, nm-1
Hen egg white lysozyme DAMMIF model
log I(s)
 s, nm-1
Synchrotron SAXS data from solutions of Hen Egg White Lysozyme pH 7.4 in 20 mM HEPES, 150 mM NaCl, pH 7.4 were collected on the BL4-2 beam line at the Stanford Synchrotron Radiation Lightsource (SSRL) storage ring (Menlo Park, CA, USA) using a Pilatus3 X 1M detector at a sample-detector distance of 1.2 m and at a wavelength of λ = 0.1127 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 16.00 mg/ml was measured at 15°C. 16 successive 1 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Hen egg white lysozyme (Lyszoyme)
Mol. type   Protein
Organism   Gallus gallus
Olig. state   Monomer
Mon. MW   14.3 kDa

UniProt   P00698 (19-147)
Sequence   FASTA
