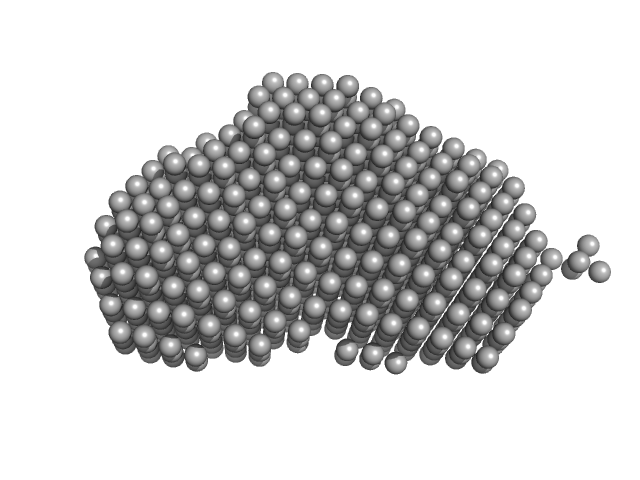

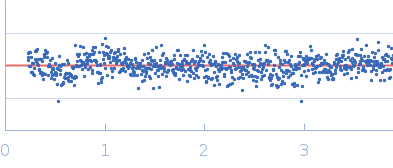

SAXS data for non-structural protein 9 (Nsp9) from SARS-CoV-2, in 25 mM sodium phosphate pH 6.0, 150 mM NaCl, 1 mM DTT with 5% glycerol as a stabilizer, were collected at the BioSAXS beamline of the Australian Synchrotron. The X-ray wavelength was 1.002 Å; the detector was a Dectris Pilatus3X-2M with in-vacuum movable detector system, 172 µm2 pixel size, 25 Hz frame rate, count rate per detector pixel was 39.95 counts/s; the sample-to-detector distance was 3150 mm to yield a measured q-range 0.0051–0.4768 Å-1; exposures were 1 second for 16 exposures and absolute scaling used water as a secondary standard. Samples were spun at 21,000 x g for 5 min and degassed in a vacuum chamber for 5 min just prior to loading onto a 96-well plate for measurement. Concentration values are for the nominal Nsp9 component prior to that procedure according to absorbance at 280 nm. Shown here are the 6 mg/mL data, where the structural parameters, including the Porod volume, and DAMMIN envelops indicate the protein is fully dimeric. The very small deviations in the low-q residual difference plots are consistent with a very small amount of aggregate present in the solution. A full concentration series (0.05–8 mg/mL) was performed for Nsp9 and data for all concentrations are available in zipped folders with this deposition.
.
|
|
s, nm-1
