Plasmodium circumsporozoite proteins

Yann Sterckx.

SASDZH3 – Plasmodium facliparum Circumsporozoite protein (CSP), C-terminal domain

Circumsporozoite protein
MWexperimental 14 kDa
MWexpected 14 kDa
VPorod 29 nm3
log I(s) 2.41×101 2.41×100 2.41×10-1 2.41×10-2
Circumsporozoite protein small angle scattering data  s, nm-1
ln I(s)

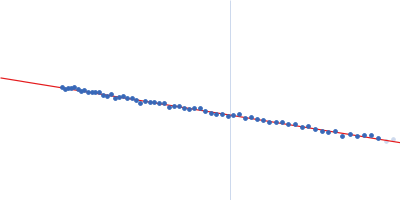

Circumsporozoite protein Guinier plot ln 2.42×101 Rg: 2.4 nm 0 (2.4 nm)-2 s2
(sRg)2I(s)/I(0)

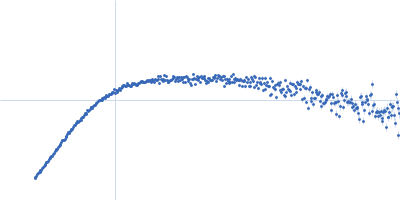

Circumsporozoite protein Kratky plot 1.104 0 √3 sRg
p(r)

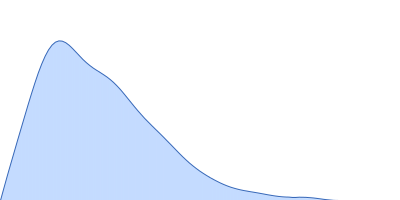

Circumsporozoite protein pair distance distribution function Rg: 2.6 nm 0 Dmax: 11 nm

Data validation

Fits and models

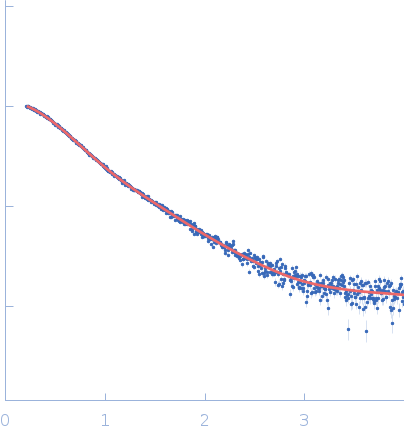

log I(s)
 s, nm-1
Circumsporozoite protein BILBOMD model
Synchrotron SAXS data from solutions of Plasmodium facliparum Circumsporozoite protein (CSP), C-terminal domain in 50 mM Tris, 500 mM NaCl, pH 7.5 were collected on the BM29 beam line at the ESRF storage ring (Grenoble, France) using a Pilatus 1M detector at a sample-detector distance of 2.8 m and at a wavelength of λ = 0.099 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 50.00 μl sample at 10 mg/ml was injected at a 0.25 ml/min flow rate onto a Shodex KW402.5-4F column at 20°C. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

X-ray Exposure time = UNKNOWN. Number of frames = UNKNOWN

Circumsporozoite protein (PfCSPCext)
Mol. type   Protein
Organism   Plasmodium falciparum (isolate NF54)
Olig. state   Monomer
Mon. MW   14.2 kDa

UniProt   P19597 (274-384)
Sequence   FASTA
