The Central Region of Testican-2 Forms a Compact Core and Promotes Cell Migration

Krajnc A, Gaber A, Lenarčič B, Pavšič M
International Journal of Molecular Sciences 21(24):9413 (2020 Dec 10)

doi: 10.3390/ijms21249413 		Submitted to SASBDB: 2020 Oct 21
Published in SASBDB:

SASDKJ2 – Testican-2 (23-379) Ca-free

Testican-2 experimental SAS data

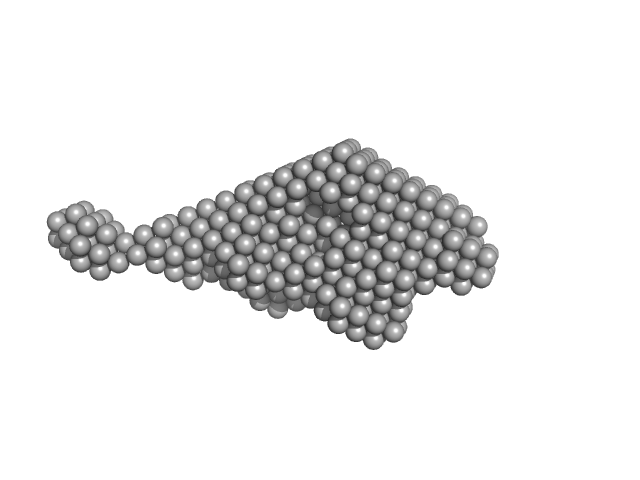

DAMMIN model
Sample: Testican-2 monomer, 40 kDa Homo sapiens protein
Buffer: 20 mM HEPES (Na), 130 mM NaCl, 5 % (v/v) glycerol, pH: 7.4
Experiment: SAXS data collected at EMBL P12, PETRA III on 2016 Oct 18
RgGuinier 3.4 nm
Dmax 14.0 nm
VolumePorod 82 nm3

SASDKK2 – Testican-2 (23-379) Ca-loaded

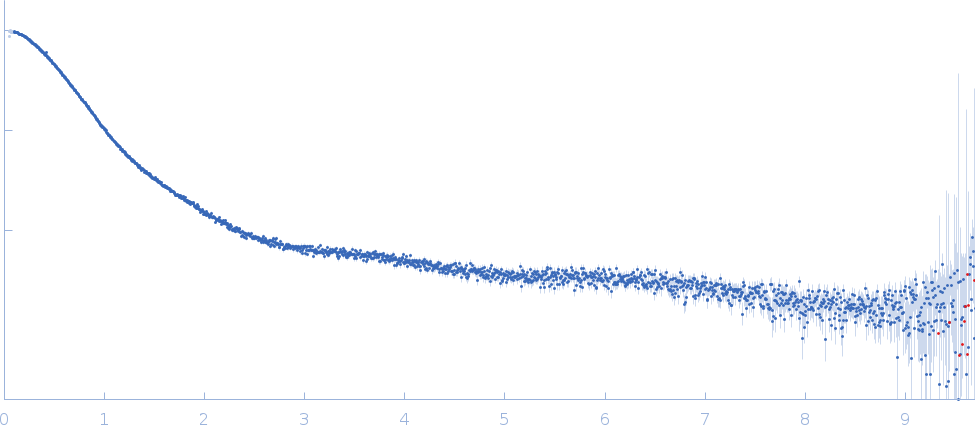

Testican-2 experimental SAS data

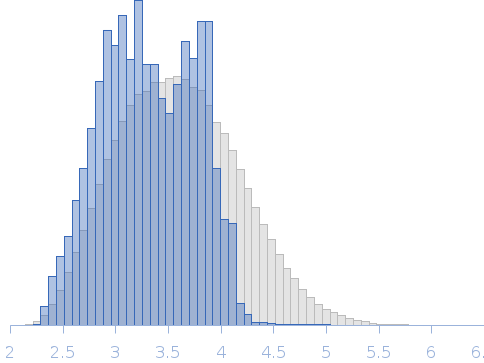

Testican-2 (23-379) Ca-loaded Rg histogram
Sample: Testican-2 monomer, 40 kDa Homo sapiens protein
Buffer: 20 mM HEPES (Na), 130 mM NaCl, 3 mM CaCl2, 5 % (v/v) glycerol, pH: 7.4
Experiment: SAXS data collected at EMBL P12, PETRA III on 2016 Oct 18
RgGuinier 3.2 nm
Dmax 12.6 nm
VolumePorod 78 nm3
