Structural and Biophysical Analysis of the CLCA1 VWA Domain Suggests Mode of TMEM16A Engagement.

Berry KN, Brett TJ
Cell Rep 30(4):1141-1151.e3 (2020 Jan 28)
PMID: 31995732
doi: 10.1016/j.celrep.2019.12.059
Submitted to SASBDB: 2019 Dec 12
Published in SASBDB:

SASDH24 – Calcium-Activated Chloride Channel Regulator 1 VWA domain

Calcium-activated chloride channel regulator 1 experimental SAS data
DAMFILT model
Sample: Calcium-activated chloride channel regulator 1 monomer, 20 kDa Homo sapiens protein
Buffer: 20 mM HEPES, 150 mM NaCl, 2% glycerol, pH: 7.4
Experiment: SAXS data collected at 12ID-B SAXS/WAXS, Advanced Photon Source (APS), Argonne National Laboratory on 2017 Jun 6
RgGuinier 1.8 nm
Dmax 6.6 nm

SASDH34 – Calcium-Activated Chloride Channel Regulator 1 CAT-CYS-VWA domain construct

Calcium-activated chloride channel regulator 1 experimental SAS data

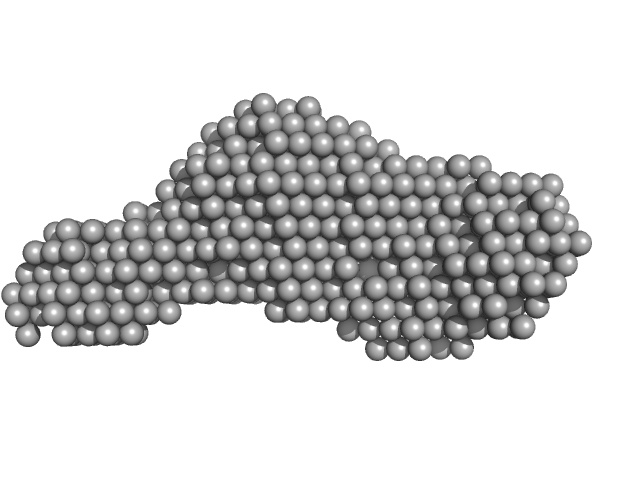

DAMFILT model
Sample: Calcium-activated chloride channel regulator 1 monomer, 52 kDa Homo sapiens protein
Buffer: 20 mM HEPES, 150 mM NaCl, 2% glycerol, pH: 7.4
Experiment: SAXS data collected at 12.3.1 (SIBYLS), Advanced Light Source (ALS) on 2017 Jun 6
RgGuinier 3.4 nm
Dmax 13.4 nm
