| MWI(0) | 145 | kDa |
| MWexpected | 118 | kDa |
| VPorod | 227 | nm3 |
|
log I(s)
4.10×10-2
4.10×10-3
4.10×10-4
4.10×10-5
|
s, nm-1
|

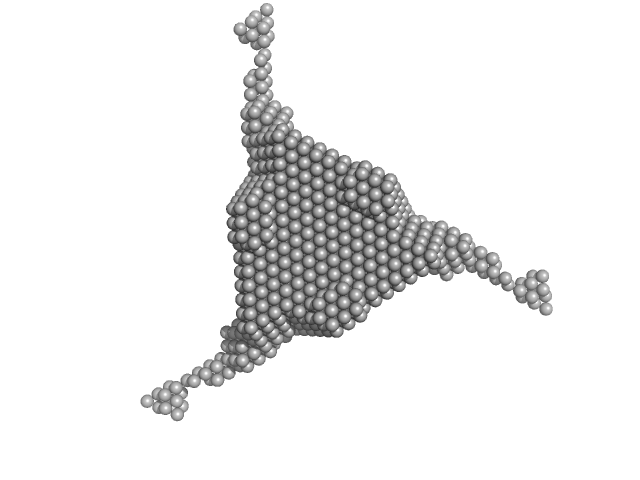

Structural model of human dUTPase in complex with a novel proteinaceous inhibitor.
Nyíri K, Mertens HDT, Tihanyi B, Nagy GN, Kőhegyi B, Matejka J, Harris MJ, Szabó JE, Papp-Kádár V, Németh-Pongrácz V, Ozohanics O, Vékey K, Svergun DI, Borysik AJ, Vértessy BG, Sci Rep 8(1):4326 (2018) Europe PMCSASDC77 – Deoxyuridine 5'-triphosphate nucleotidohydrolase complex with SaPIbov1 pathogenicity island repressor [3:3] (SEC-SAXS)
Deoxyuridine 5'-triphosphate nucleotidohydrolaseSaPIbov1 pathogenicity island repressor
|
|
|

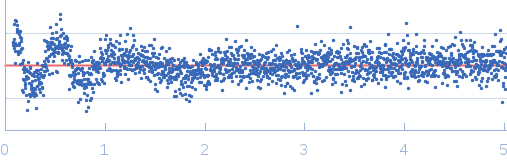

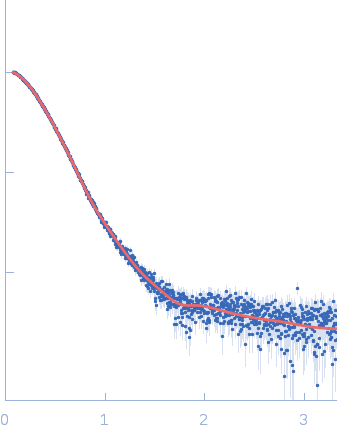

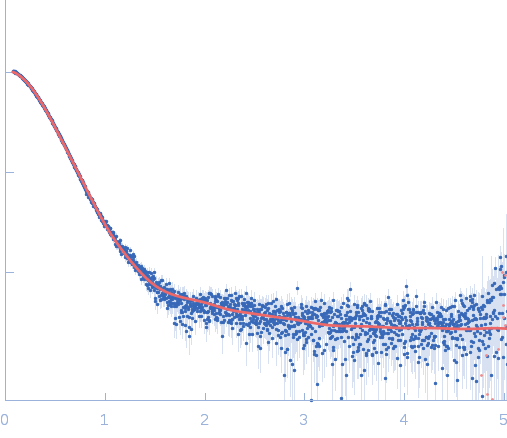

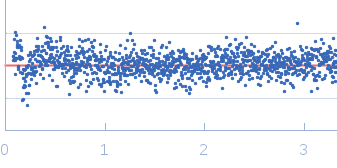

Fits and models
|
|
|
|
|
Synchrotron SAXS
data from solutions of
Deoxyuridine 5'-triphosphate nucleotidohydrolase complex with SaPIbov1 pathogenicity island repressor [3:3] (SEC-SAXS)
in
50 mM HEPES 300 mM NaCl 5 mM MgCl2, pH 7.5
were collected
on the
EMBL P12 beam line
at the PETRA III storage ring
(DESY; Hamburg, Germany)
using a Pilatus 2M detector
at a sample-detector distance of 3.1 m and
at a wavelength of λ = 0.124 nm
(I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle).
at 10°C.
3600 successive
1 second frames were collected.
The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.
Concentration = UNKNOWN |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
