SASDFN8 – Apoferritin from horse spleen - SEC-SAXS coupled to multiangle laser and quasi-elastic light scattering (MALLS and QELS)

Apoferritin light chain
MWexperimental 454 kDa
MWexpected 479 kDa
VPorod 679 nm3
log I(s) 5.09×104 5.09×103 5.09×102 5.09×101
Apoferritin light chain small angle scattering data  s, nm-1
ln I(s)
Apoferritin light chain Guinier plot ln 5.10×104 Rg: 5.4 nm 0 (5.4 nm)-2 s2

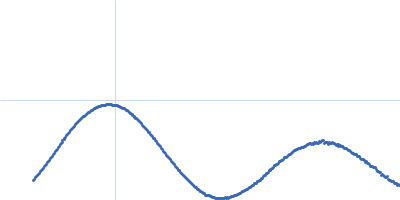

Apoferritin light chain Kratky plot 1.104 0 3 sRg

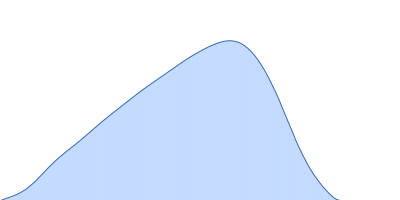

Apoferritin light chain pair distance distribution function Rg: 5.2 nm 0 Dmax: 12.5 nm

Data validation

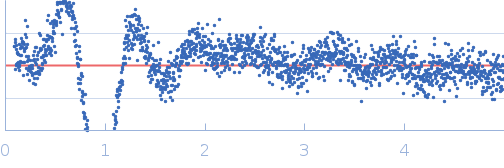

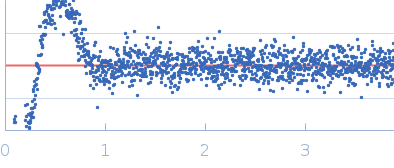

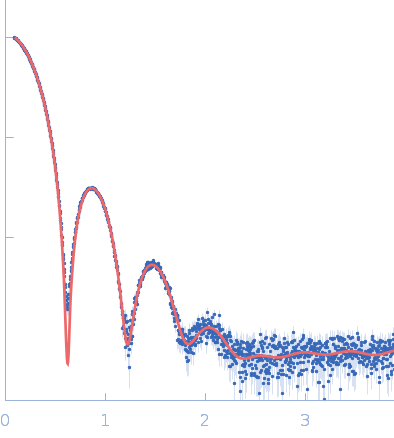

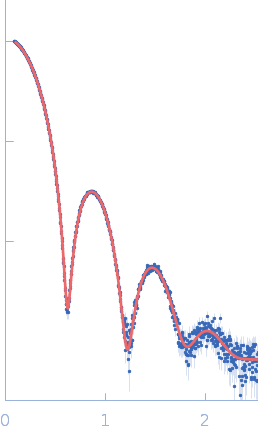

Fits and models

log I(s)
 s, nm-1
Apoferritin light chain DAMMIN model
Apoferritin light chain DAMFILT model

log I(s)
 s, nm-1
Apoferritin light chain GASBOR model

log I(s)
 s, nm-1
Apoferritin light chain PDB (PROTEIN DATA BANK) model

Synchrotron SAXS data from apoferritin in 50 mM HEPES, 150 mM NaCl, 2% v/v glycerol, pH 7 were collected on the EMBL P12 beam line at PETRA III (DESY, Hamburg, Germany) using a Pilatus 6M detector at a sample-detector distance of 3 m and at a wavelength of λ = 0.124 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 50.00 μl sample at 11 mg/ml was injected at a 0.50 ml/min flow rate onto a GE Superdex 200 Increase 10/300 column at 20°C. 85 successive 1 second frames were collected through the major SEC-elution peak and processed using CHROMIXS. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Apoferritin underwent pre-purification prior SEC-SAXS using the following method. All procedures were performed at 4 oC. An apoferritin stock solution (from equine spleen supplied in ca. 50% v/v glycerol; Sigma Gel Filtration Markers Kit MWGF1000) was diluted two-fold in 25 mM HEPES, 50 mM NaCl, 5 mM urea, 1% v/v glycerol, pH 7. Approximately 200 μl of sample were loaded onto a Superose 6 Increase 10/300 column (GE Healthcare) equilibrated in the same buffer (flow rate = 0.4 ml/min). Fractionated aliquots corresponding to the highest absorbing peak (estimated using UV A280 and UV A245 nm) were pooled and concentrated (30 kDa centrifuge spin filter) to a final concentration of 11 mg/ml (the concentration was determined from triplicate UV A280 measurements using an E0.1% of 0.729 (= 1 g/l) calculated from the amino acid sequence (ProtParam)). Approximately 50 μl aliquots were snap-frozen in liquid nitrogen then stored at -80 oC prior to the SEC-SAXS analysis that was performed at room temperature in 50 mM HEPES, 150 mM NaCl, 2% v/v glycerol, pH 7. The Rg-correlation through the SEC-SAXS peak, the individual unsubtracted SEC-SAXS frames as well as the results from coupled MALLS and QELS analysis are included in the full entry zip archive. The quoted experimental molecular weight was determined using MALLS in combination with refractive-index (RI) measurements that were recorded from the same sample eluting from the column using a split-flow SEC-SAXS-light scattering configuration (Graewert et al., (2015) Sci. Reports. 5, 10734: doi: 10.1038/srep10734). The average hydrodynamic radius of the protein is 6.7 nm.
