Structural Characterization of Plant Metallothionein

Dima Molodenskiy.

SASDJE6 – Metallothionein (MT) 2 protein from the plant Cicer arietinum

Metallothionein-like protein 2
MWexperimental 6 kDa
MWexpected 8 kDa
VPorod 5 nm3
log I(s) 1.20×10-2 1.20×10-3 1.20×10-4 1.20×10-5
Metallothionein-like protein 2 small angle scattering data  s, nm-1
ln I(s)

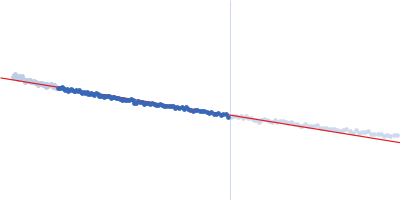

Metallothionein-like protein 2 Guinier plot ln 1.20×10-2 Rg: 1.9 nm 0 (1.9 nm)-2 s2
(sRg)2I(s)/I(0)
Metallothionein-like protein 2 Kratky plot 1.104 0 √3 sRg
p(r)
Metallothionein-like protein 2 pair distance distribution function Rg: 1.9 nm 0 Dmax: 7.3 nm

Data validation

Fits and models

log I(s)
 s, nm-1
Metallothionein (MT) 2 protein from the plant Cicer arietinum Rg histogram Rg, nm
Metallothionein-like protein 2 EOM/RANCH model
Metallothionein-like protein 2 EOM/RANCH model
Metallothionein-like protein 2 EOM/RANCH model
log I(s)
 s, nm-1
Metallothionein-like protein 2 DAMMIF model
Synchrotron SAXS data from solutions of Metallothionein (MT) 2 protein from the plant Cicer arietinum in 10 mM Tris, 50 mM NaCl, pH 7.4 were collected on the EMBL P12 beam line at the PETRA III storage ring (DESY; Hamburg, Germany) using a Pilatus 6M detector at a sample-detector distance of 3.1 m and at a wavelength of λ = 0.124 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 3.00 mg/ml was measured at 20°C. 80 successive 0.100 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Metallothionein-like protein 2 (holoMT2)
Mol. type   Protein
Organism   Cicer arietinum
Olig. state   Monomer
Mon. MW   7.8 kDa

UniProt   Q39459 (2-79)
Sequence   FASTA
