Structure and activation of the RING E3 ubiquitin ligase TRIM72 on the membrane.

Park SH, Han J, Jeong BC, Song JH, Jang SH, Jeong H, Kim BH, Ko YG, Park ZY, Lee KE, Hyun J, Song HK, Nat Struct Mol Biol (2023) Europe PMC

SASDK86 – wild-type TRIM72 (Tripartite motif-containing protein 72)

Tripartite motif-containing protein 72
MWexperimental 147 kDa
MWexpected 105 kDa
VPorod 384 nm3
log I(s) 1.49×10-3 1.49×10-4 1.49×10-5 1.49×10-6
Tripartite motif-containing protein 72 small angle scattering data  s, nm-1
ln I(s)

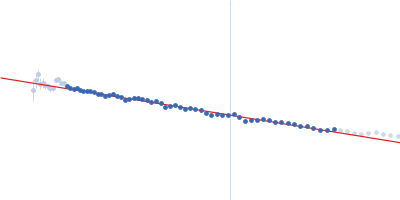

Tripartite motif-containing protein 72 Guinier plot ln 1.50×10-3 Rg: 6.9 nm 0 (6.9 nm)-2 s2
(sRg)2I(s)/I(0)

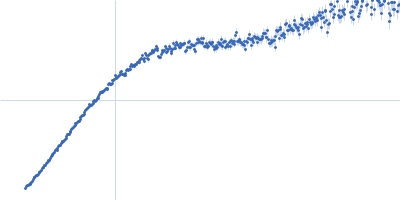

Tripartite motif-containing protein 72 Kratky plot 1.104 0 3 sRg
p(r)
Tripartite motif-containing protein 72 pair distance distribution function Rg: 6.9 nm 0 Dmax: 24 nm

Data validation


Fits and models


log I(s)
 s, nm-1

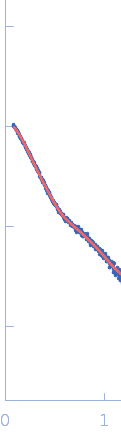

Tripartite motif-containing protein 72 DAMMIN model

log I(s)
 s, nm-1
Tripartite motif-containing protein 72 DAMMIN model

log I(s)
 s, nm-1

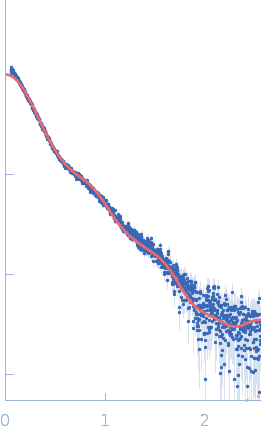

Tripartite motif-containing protein 72 SREFLEX model

Synchrotron SAXS data from solutions of TRIM72 in 25 mM Tris-HCl, pH 8.0, 300 mM NaCl, 1 mM TCEP, 1 mM DTT, were collected on the BL-10C beam line at the Photon Factory (PF), High Energy Accelerator Research Organization (KEK; Tsukuba, Japan) using a Pilatus3 2M detector at a sample-detector distance of 3.0 m and at a wavelength of λ = 0.1 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 240.00 μl sample at 8.2 mg/ml was injected at a 0.05 ml/min flow rate onto a GE Superdex 200 Increase 10/300 column at 20°C. 202 successive 5 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Tripartite motif-containing protein 72 (TRIM72)
Mol. type   Protein
Organism   Mus musculus
Olig. state   Dimer
Mon. MW   52.7 kDa

UniProt   Q1XH17 (2-477)
Sequence   FASTA

PDB ID   7DLP
