The preference signature of the SARS-CoV-2 Nucleocapsid NTD for its 5'-genomic RNA elements.

Korn SM, Dhamotharan K, Jeffries CM, Schlundt A, Nat Commun 14(1):3331 (2023) Europe PMC

SASDPP6 – 5'-genomic RNA AU extension of SARS-CoV-2 in phosphate conditions

AU extension in the 5'-genomic end of SARS-CoV-2
MWexperimental 7 kDa
MWexpected 7 kDa
VPorod 13 nm3
log I(s) 9.45×10-3 9.45×10-4 9.45×10-5 9.45×10-6
AU extension in the 5'-genomic end of SARS-CoV-2 small angle scattering data  s, nm-1
ln I(s)

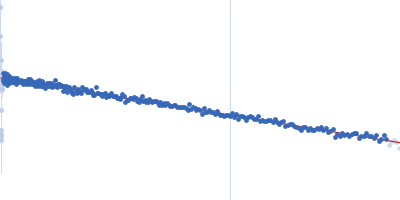

AU extension in the 5'-genomic end of SARS-CoV-2 Guinier plot ln 9.46×10-3 Rg: 1.5 nm 0 (1.5 nm)-2 s2
(sRg)2I(s)/I(0)

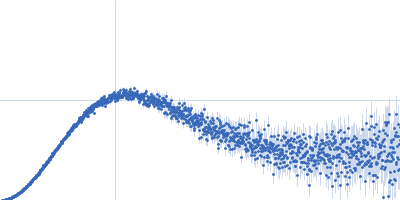

AU extension in the 5'-genomic end of SARS-CoV-2 Kratky plot 1.104 0 3 sRg

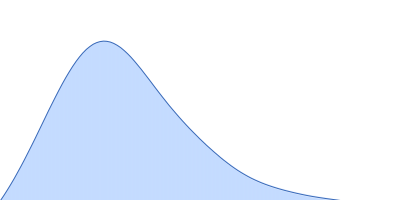

p(r)
AU extension in the 5'-genomic end of SARS-CoV-2 pair distance distribution function Rg: 1.6 nm 0 Dmax: 5.4 nm

Data validation

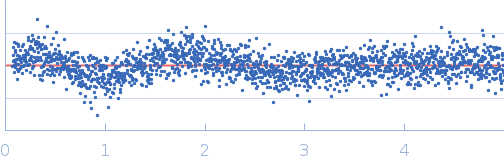

Fits and models

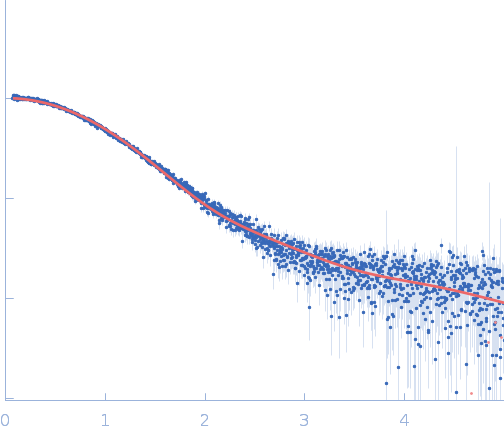

log I(s)
 s, nm-1
AU extension in the 5'-genomic end of SARS-CoV-2 RNAMASONRY model

Synchrotron SAXS data from solutions of 5'-genomic RNA AU extension of SARS-CoV-2 in 25 mM potassium phosphate, 150 mM KCl, 2 mM TCEP, pH 6.5 were collected on the EMBL P12 beam line at PETRA III (DESY, Hamburg, Germany) using a Pilatus 6M detector at a sample-detector distance of 3 m and at a wavelength of λ = 0.124 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 90.00 μl sample at 2.2 mg/ml was injected at a 0.70 ml/min flow rate onto a GE Superdex 75 Increase 10/300 column at 20°C. 2160 successive 0.995 second frames were collected through the SEC elution. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted. 28 sample frames from the SEC peak were selected for averaging using CHROMIXS.

Additional SEC-SAXS data (unsubtracted frames) are made available in the full entry zip archive.

AU extension in the 5'-genomic end of SARS-CoV-2 (Ext)
Mol. type   RNA
Organism   Severe acute respiratory syndrome coronavirus 2
Olig. state   Monomer
Mon. MW   7.1 kDa
Sequence   FASTA
