| MWexperimental | 239 | kDa |
| MWexpected | 239 | kDa |
| VPorod | 325 | nm3 |
|
log I(s)
1.58×10-1
1.58×10-2
1.58×10-3
1.58×10-4
|
s, nm-1
|
Phage T3 overcomes the BREX defense through SAM cleavage and inhibition of SAM synthesis by SAM lyase.
Andriianov A, Trigüis S, Drobiazko A, Sierro N, Ivanov NV, Selmer M Severinov K, Isaev A, Cell Rep 42(8):112972 (2023) Europe PMCSASDQ95 – The complex formed between E. coli S-adenosylmethionine synthase and wild-type S-adenosyl-L-methionine lyase from bacteriophage T3
S-adenosylmethionine synthaseS-adenosyl-L-methionine lyase
|
|
|

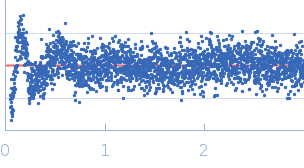

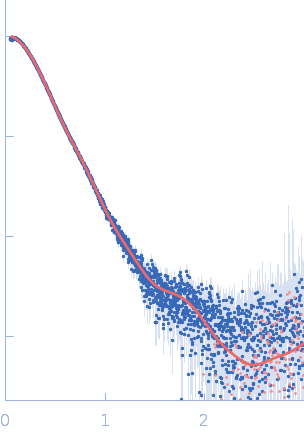

Fits and models
|
|
|
Synchrotron SAXS data from solutions of the complex formed between E. coli S-adenosylmethionine synthase and wild-type S-adenosyl-L-methionine lyase from bacteriophage T3 in 50 mM Tris-HCl, 300 mM NaCl, 5 mM β-mercaptoethanol, 2 % glycerol, pH 7.5 were collected on the B21 beam line at the Diamond Light Source (Didcot, UK) using a Eiger 4M detector at a sample-detector distance of 4.0 m and at a wavelength of λ = 0.09998 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 50.00 μl sample at 4.9 mg/ml was injected at a 0.16 ml/min flow rate onto a Shodex KW403 column at 25°C. Nine successive 3 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

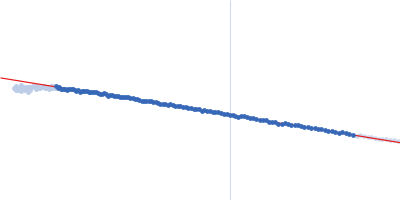

Rg and MW calculated using SAXSMoW: http://saxs.ifsc.usp.br |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
