Synchrotron SAXS data from solutions of lantibiotic dehydratase MadB bound to truncated maddinglicin in 50 mM HEPES, 200 mM NaCl, 1 % (v/v) glycerol, pH 8 were collected on the BM29 beam line at the ESRF (Grenoble, France) using a Pilatus3 2M detector at a sample-detector distance of 2.8 m and at a wavelength of λ = 0.099 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). In-line size-exclusion chromatography (SEC) SAS was employed. The SEC parameters were as follows: A 50.00 μl sample at 10 mg/ml was injected at a 0.08 ml/min flow rate onto a GE Superdex 200 Increase 3.2/300 column at 10°C. 1200 successive 2 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.
MadB (10.00 mg/ml) incubated with Leader3 (400 µM)
|
|

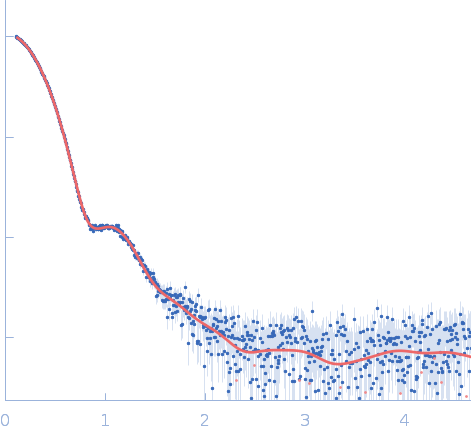

s, nm-1
