Feilen L,
Sach L,
Tranchant E,
Lalic M
Havelund J,
Jeria Cerda C,
Ginsthofer M,
Ostendorf J,
Ma L,
Morrow E,
Færgeman N,
Pedersen S,
Kragelund B,
Autzen H,
Nature Communications
(2026)
DOI
SASDXC6 – Sodium/hydrogen exchanger 6 protein (HsNHE6) C-terminal end (G586-A701)
Dmax unknown – experimental data range validation not possible.
There are no models related to this curve.

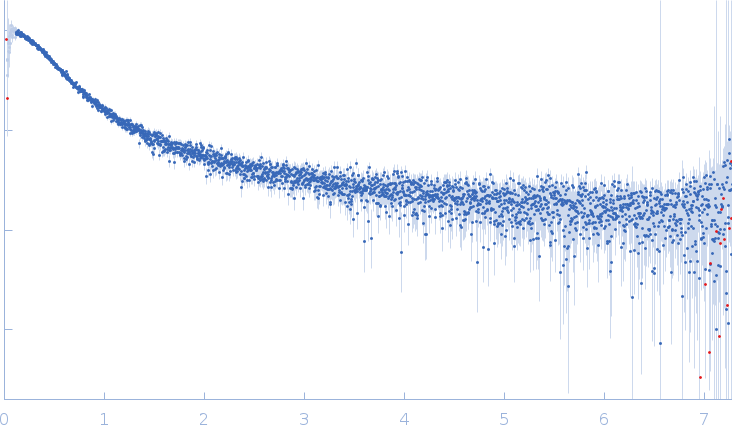

Synchrotron SAXS
data from solutions of
Sodium/hydrogen exchanger 6 protein (HsNHE6) C-terminal end (G586-A701)
in
20 mM HEPES, 150 mM NaCl, 5 mM DTT, pH 7.4
were collected
on the
EMBL P12 beam line
at the PETRA III storage ring
(DESY; Hamburg, Germany)
using a Pilatus 6M detector
at a sample-detector distance of 3 m and
at a wavelength of λ = 0.123981 nm
(I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle).
One solute concentration of 4.00 mg/ml was measured
at 20°C.
19 successive
0.100 second frames were collected.
The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.
s, nm-1
