Tel50 + ligands

valeria libera.

SASDYJ3 – human telomeric g-quadruplex Tel50+SYUIQ-5 (1:3)

human telomeric g-quadruplex
MWexperimental 15 kDa
MWexpected 16 kDa
log I(s) 2.98×10-6 2.98×10-7 2.98×10-8 2.98×10-9
human telomeric g-quadruplex small angle scattering data  s, nm-1
ln I(s)

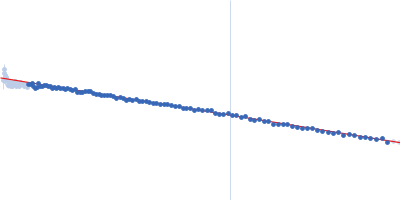

human telomeric g-quadruplex Guinier plot ln 2.98×10-6 Rg: 1.9 nm 0 (1.9 nm)-2 s2
(sRg)2I(s)/I(0)
human telomeric g-quadruplex Kratky plot 1.104 0 √3 sRg

Data validation

There are no models related to this curve.

Synchrotron SAXS data from solutions of human telomeric g-quadruplex Tel50+SYUIQ-5 (1:3) in 5 mM KH2PO4/K2HPO4, pH 7 were collected on the BM29 beam line at the ESRF storage ring (Grenoble, France) using a Pilatus 1M detector at a wavelength of λ = 0.099 nm (I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). One solute concentration of 0.80 mg/ml was measured at 20°C. 10 successive 1 second frames were collected. The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.

Sample detector distance = UNKNOWN

human telomeric g-quadruplex (Tel50)
Mol. type   DNA
Olig. state   Other
Mon. MW   15.8 kDa
Sequence   FASTA
