| MWexperimental | 31 | kDa |
| MWexpected | 35 | kDa |
|
log I(s)
2.00×10-2
2.00×10-3
2.00×10-4
2.00×10-5
|
s, nm-1
|
Conserved dimerization architecture in C-type lectins from virus-vector mosquitoes
Max Renner.SASDZ66 – C-type lectin mosGCTL-1 from Aedes aegypti, ~0.8 mg/ml
C-type lectin mosGCTL-1|
|
|

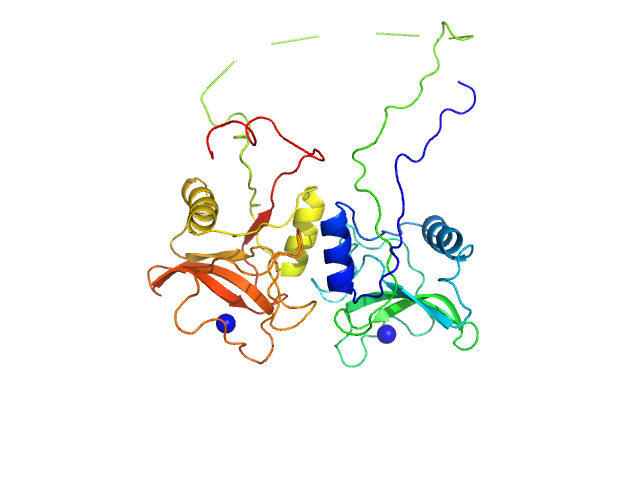

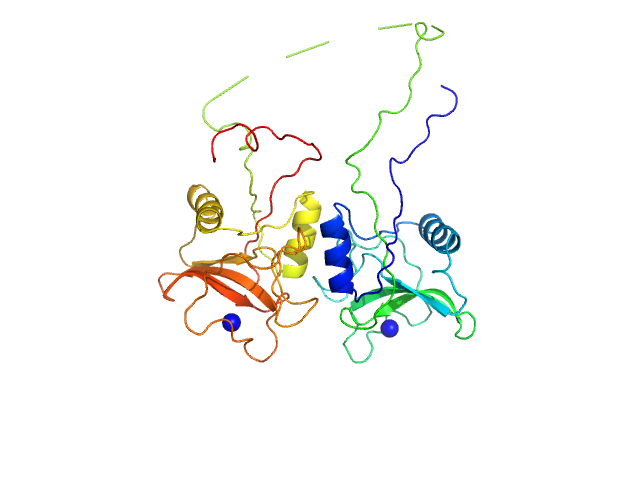

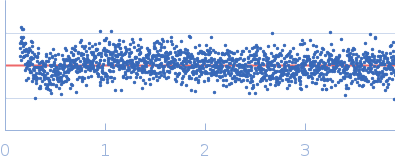

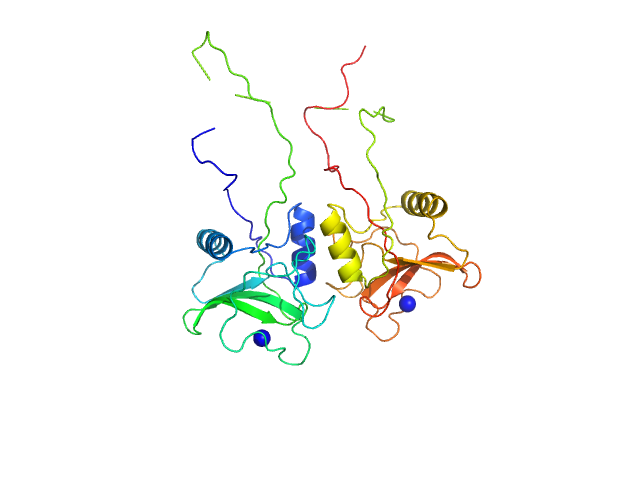

Fits and models
|
Rg, nm
|
|
Synchrotron SAXS
data from solutions of
C-type lectin mosGCTL-1 from Aedes aegypti, ~0.8 mg/ml
in
25 mM Citrate, 1 M NaCl, 10 mM CaCl2, pH 4
were collected
on the
B21 beam line
at the Diamond Light Source storage ring
(Didcot, UK)
using a Pilatus 2M detector
at a sample-detector distance of 4 m and
at a wavelength of λ = 0.1 nm
(I(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle).
One solute concentration of 0.80 mg/ml was measured
at 15°C.
120 successive
frames were collected.
The data were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted.
X-ray Exposure time = UNKNOWN |
|
|||||||||||||||||||||||||||
