Conserved dimerization architecture in C-type lectins from virus-vector mosquitoes

Max Renner

Submitted to SASBDB: 2026 May 5 Published in SASBDB: 2026 May 5

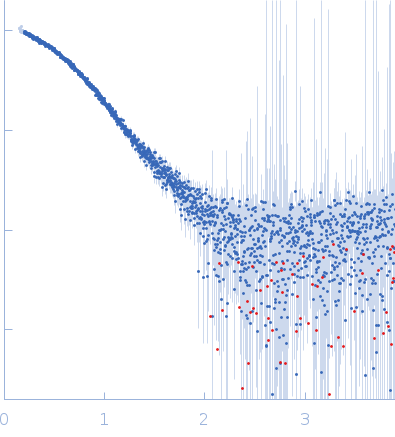

SASDZ76 – C-type lectin mosGCTL-1 from Aedes aegypti, ~1.0 mg/ml Sample: C-type lectin mosGCTL-1 dimer, 35 kDa Aedes aegypti protein Buffer: 25 mM Citrate, 1 M NaCl, 10 mM CaCl2, pH: 4 Experiment: SAXS data collected at B21, Diamond Light Source on 2017 Aug 7 RgGuinier 2.4 nm

SASDZ66 – C-type lectin mosGCTL-1 from Aedes aegypti, ~0.8 mg/ml Sample: C-type lectin mosGCTL-1 dimer, 35 kDa Aedes aegypti protein Buffer: 25 mM Citrate, 1 M NaCl, 10 mM CaCl2, pH: 4 Experiment: SAXS data collected at B21, Diamond Light Source on 2017 Aug 7 RgGuinier 2.4 nm

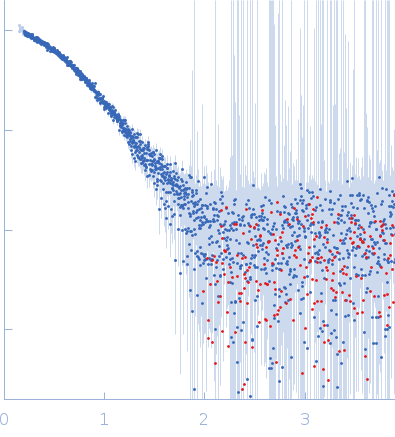

SASDZ56 – C-type lectin mosGCTL-1 from Aedes aegypti, ~0.6 mg/ml Sample: C-type lectin mosGCTL-1 dimer, 35 kDa Aedes aegypti protein Buffer: 25 mM Citrate, 1 M NaCl, 10 mM CaCl2, pH: 4 Experiment: SAXS data collected at B21, Diamond Light Source on 2017 Aug 7 RgGuinier 2.4 nm

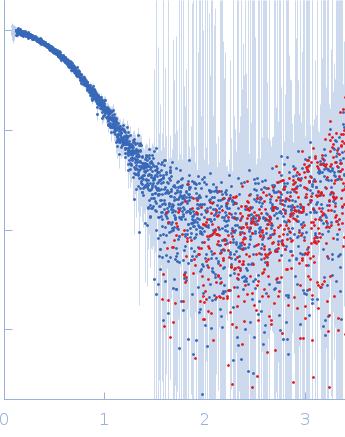

SASDZ86 – C-type lectin mosGCTL-3 from Aedes aegypti, ~0.45 mg/ml Sample: MosGCTL-3 dimer, 36 kDa Aedes aegypti protein Buffer: 20 mM Tris, 250 mM NaCl, 2.5 mM CaCl2, pH: 7.5 Experiment: SAXS data collected at B21, Diamond Light Source on 2020 Dec 17 RgGuinier 2.4 nm

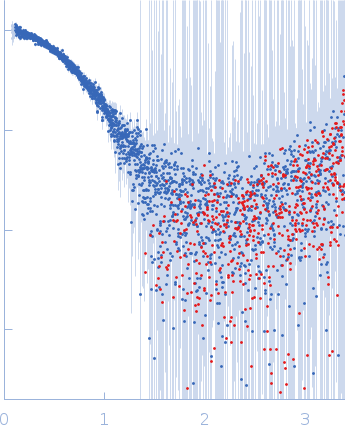

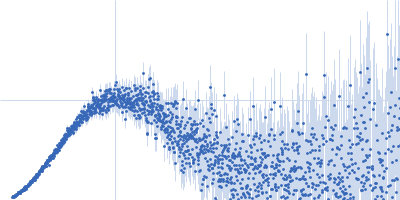

SASDZZ5 – C-type lectin mosGCTL-3 from Aedes aegypti, ~0.3 mg/ml Sample: MosGCTL-3 dimer, 36 kDa Aedes aegypti protein Buffer: 20 mM Tris, 250 mM NaCl, 2.5 mM CaCl2, pH: 7.5 Experiment: SAXS data collected at B21, Diamond Light Source on 2020 Dec 17 RgGuinier 2.4 nm

SASDZ26 – C-type lectin mosGCTL-3 from Aedes aegypti, ~0.2 mg/ml Sample: MosGCTL-3 dimer, 36 kDa Aedes aegypti protein Buffer: 20 mM Tris, 250 mM NaCl, 2.5 mM CaCl2, pH: 7.5 Experiment: SAXS data collected at B21, Diamond Light Source on 2020 Dec 17 RgGuinier 2.4 nm
