Quantitative live-cell imaging and 3D modeling reveal critical functional features in the cytosolic complex of phagocyte NADPH oxidase.

Ziegler CS, Bouchab L, Tramier M, Durand D, Fieschi F, Dupré-Crochet S, Mérola F, Nüße O, Erard M, J Biol Chem (2019) Europe PMC

SASDEL3 – The neutrophil cytosol factor 2 (p67phox) subunit of phagocyte NADPH oxidase

Neutrophil cytosol factor 2
MWI(0) 60 kDa
MWexpected 61 kDa
VPorod 113 nm3
log I(s) 5.00×10-2 5.00×10-3 5.00×10-4 5.00×10-5
Neutrophil cytosol factor 2 small angle scattering data  s, nm-1
ln I(s)

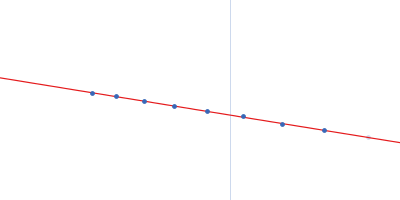

Neutrophil cytosol factor 2 Guinier plot ln 5×10-2 Rg: 4.3 nm 0 (4.3 nm)-2 s2

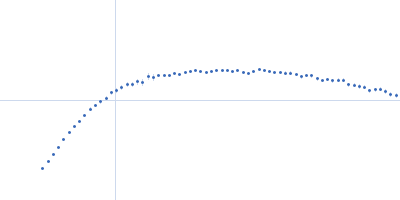

Neutrophil cytosol factor 2 Kratky plot 1.104 0 3 sRg

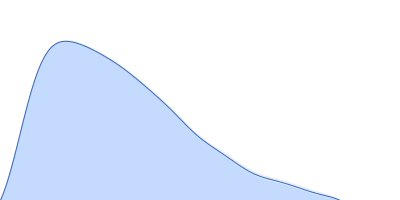

Neutrophil cytosol factor 2 pair distance distribution function Rg: 4.5 nm 0 Dmax: 16 nm

Data validation

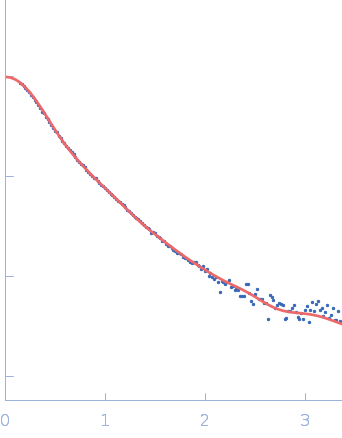

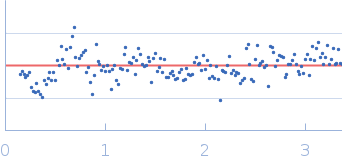

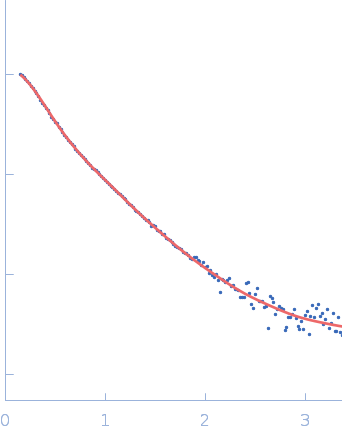

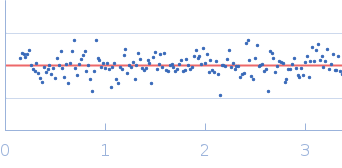

Fits and models

log I(s)
 s, nm-1
The neutrophil cytosol factor 2 (p67phox) subunit of phagocyte NADPH oxidase Rg histogram Rg, nm

log I(s)
 s, nm-1

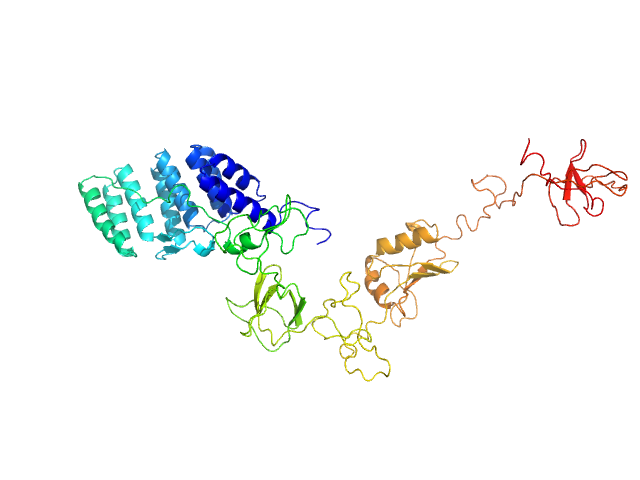

Neutrophil cytosol factor 2 CUSTOM IN-HOUSE model

Synchrotron SAXS data from solutions of the p67phox subunit of phagocyte NADPH oxidase in 20 mM HEPES, 50 mM NaCl, 1 mM EDTA, 2 mM DTT, 5% glycerol, pH 8 were collected on the D24 beam line at the LURE storage ring (Orsay, France) using a linear gas home-made detector at a sample-detector distance of 1.4 m and at a wavelength of λ = 0.1488 nm (l(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). Samples were studied at different concentrations ranging from 0.3 to 3.8 mg/ml measured at 4°C. Eight successive 200 second frames were collected. SAXS data were normalized to the intensity of the incident beam, averaged and background subtracted using the program package PRIMUS. Intensities were put on an absolute scale (cm-1) using water scattering. The final pattern used for fitting was obtained by extrapolating to infinite dilution of the set of curves recorded at the different concentrations. Molecular mass was obtained using the bayesian inference approach proposed in PRIMUS/qt, which combines four concentration independent MM estimators: M=62.4 kDa within the credibility interval [60.2-67.9].

Neutrophil cytosol factor 2 (p67phox)
Mol. type   Protein
Organism   Homo sapiens
Olig. state   Monomer
Mon. MW   60.7 kDa
UniProt   P19878 (1-526)
Sequence   FASTA
