cGAS facilitates sensing of extracellular cyclic dinucleotides to activate innate immunity.

Liu H, Moura-Alves P, Pei G, Mollenkopf HJ, Hurwitz R, Wu X, Wang F, Liu S, Ma M, Fei Y, Zhu C, Koehler AB, Oberbeck-Mueller D, Hahnke K, Klemm M, Guhlich-Bornhof U, Ge B, Tuukkanen A, Kolbe M, Dorhoi A, Kaufmann SH, EMBO Rep (2019) Europe PMC

SASDEP9 – Cyclic GMP-AMP synthase (cGAS)

Cyclic GMP-AMP synthase
MWexperimental 65 kDa
MWexpected 61 kDa
VPorod 110 nm3
log I(s) 2.16×103 2.16×102 2.16×101 2.16×100
Cyclic GMP-AMP synthase small angle scattering data  s, nm-1
ln I(s)
Cyclic GMP-AMP synthase Guinier plot ln 2.17×103 Rg: 3.1 nm 0 (3.1 nm)-2 s2
(sRg)2I(s)/I(0)
Cyclic GMP-AMP synthase Kratky plot 1.104 0 √3 sRg
p(r)
Cyclic GMP-AMP synthase pair distance distribution function Rg: 3.4 nm 0 Dmax: 12.7 nm

Data validation

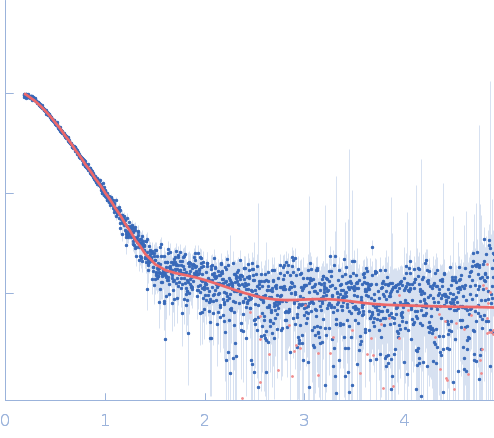

Fits and models

log I(s)
 s, nm-1
Cyclic GMP-AMP synthase (cGAS) Rg histogram Rg, nm
Cyclic GMP-AMP synthase EOM/RANCH model
Cyclic GMP-AMP synthase EOM/RANCH model
Cyclic GMP-AMP synthase EOM/RANCH model
Cyclic GMP-AMP synthase EOM/RANCH model
Cyclic GMP-AMP synthase EOM/RANCH model
Cyclic GMP-AMP synthase EOM/RANCH model
Synchrotron SAXS data from solutions of cyclic GMP-AMP synthase (cGAS) in 20 mM HEPES, pH 7.4 were measured using size-exclusion chromatography SAXS (SEC-SAXS) on the EMBL P12 beam line at the PETRA III storage ring (Hamburg, Germany) using a Pilatus 2M detector at a sample-detector distance of 3 m and at a wavelength of λ = 0.124 nm (l(s) vs s, where s = 4πsinθ/λ, and 2θ is the scattering angle). SEC-SAXS was performed at 20 °C using the following parameters: Column: XXXX ; Flow rate: 0.5 mL/min; Total acquisition time: 3600 x 1 s frames; Sample injection concentration: 9 mg/mL; Injection volume: 75 μL. The data obtained through the sample elution peak were normalized to the intensity of the transmitted beam and radially averaged; the scattering of the solvent-blank was subtracted and the individual subtracted data sets were scaled and averaged to generate the scattering profile displayed in this entry.

SEC column = UNKNOWN. Sample injection volume = UNKNOWN. Flow rate = UNKNOWN

Cyclic GMP-AMP synthase (cGAS)
Mol. type   Protein
Organism   Homo sapiens
Olig. state   Monomer
Mon. MW   61.4 kDa

UniProt   Q8N884 (1-522)
Sequence   FASTA
