Structural model of the cytosolic domain of the plant ethylene receptor 1 (ETR1).

Mayerhofer H, Panneerselvam S, Kaljunen H, Tuukkanen A, Mertens HD, Mueller-Dieckmann J
J Biol Chem 290(5):2644-58 (2015 Jan 30)

PMID: 25451923 doi: 10.1074/jbc.M114.587667

Submitted to SASBDB: 2017 Feb 7 Published in SASBDB: 2017 Feb 9

SASDC32 – Ethylene Receptor 1 Cytosolic Domain (in 250 mM NDSB) Sample: Ethylene Receptor 1 dimer, 129 kDa Arabidopsis thaliana protein Buffer: 20 mM Tris-NDSB 150 mM NaCl 1mM DTT 250 mM NDSB, pH: 8.8 Experiment: SAXS data collected at EMBL X33, DORIS III, DESY on 2011 Mar 19 RgGuinier 4.7 nm Dmax 15.8 nm VolumePorod 316 nm3

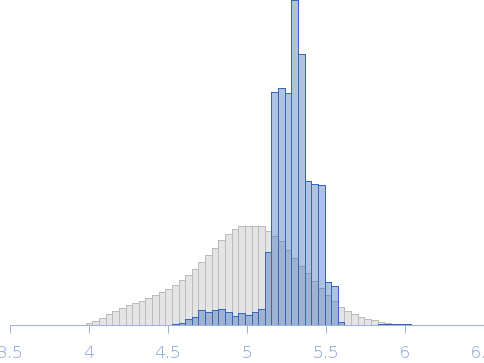

SASDC42 – Ethylene Receptor 1 Cytosolic Domain Sample: Ethylene Receptor 1 dimer, 129 kDa Arabidopsis thaliana protein Buffer: 20 mM TRIS 150 mM NaCl 1mM DTT 250mM NDSB, pH: 8.8 Experiment: SAXS data collected at EMBL P12, PETRA III on 2013 Mar 29 RgGuinier 5.5 nm Dmax 19.0 nm VolumePorod 274 nm3

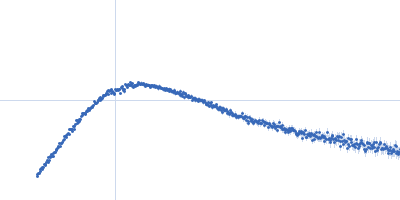

SASDC97 – Ethylene Receptor 1 (DHp + CA + RD domains) Sample: Ethylene receptor 1 dimerization histidine phosphotransfer + catalytic ATP-binding + receiver domains dimer, 88 kDa Arabidopsis thaliana protein Buffer: 20 mM Tris 150 mM NaCl 1 mM DTT 5 mM ADP, pH: 8.8 Experiment: SAXS data collected at EMBL X33, DORIS III, DESY on 2010 Oct 11 RgGuinier 4.0 nm Dmax 13.9 nm VolumePorod 144 nm3
